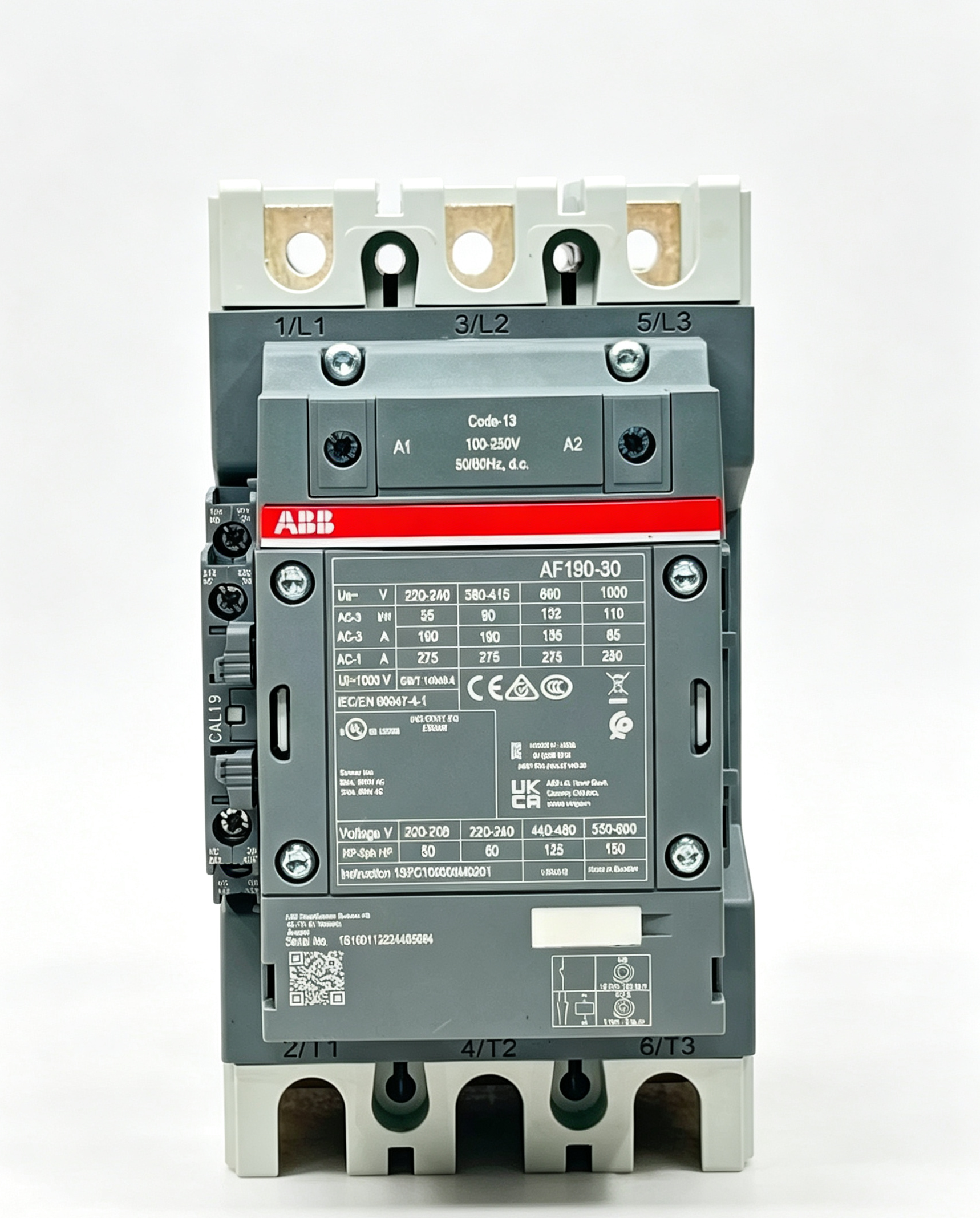

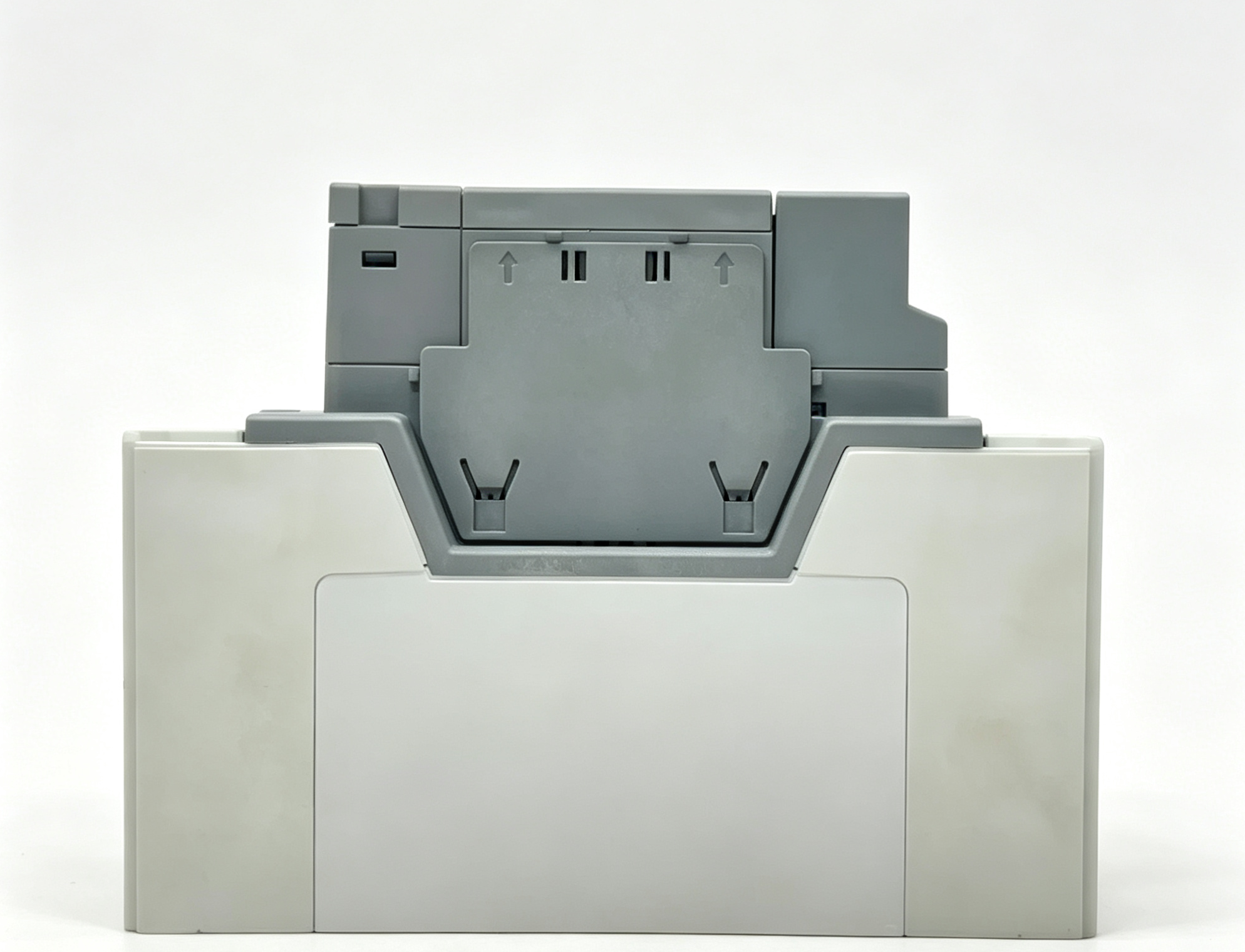

ABB 1SFL487002R1311 AF190-30-11-13 3-Pole Contactor with 100-250V AC/DC Coil

The contactor provides three main normally open contacts and pre-mounted auxiliary contacts. Its main circuit uses bar terminals, while the AF contactor technology provides a broad control-voltage operating range suitable for systems where control voltage variation can occur. :contentReference[oaicite:2]{index=2}

Product Identification

• Manufacturer: ABB
• Part Number: 1SFL487002R1311
• Extended Product Type: AF190-30-11-13
• Product Type: AF Contactor
• Contactor Design: Block Type
• Number of Poles: 3
• Main Contacts: 3 NO
• Auxiliary Contacts: 1 NO + 1 NC
• Control Voltage: 100-250 V AC/DC
• Main Circuit Rated Operational Voltage: Up to 1000 V IEC
• AC-3 Rated Current: Up to 190 A at relevant operating conditions

ABB AF190-30-11-13 Overview

The AF190-30-11-13 is part of ABB’s AF contactor family. It is intended for switching three-phase power circuits and controlling motors in industrial electrical systems.

ABB specifies the contactor for applications including motor starting, isolation, bypass and distribution. The device has a 3-pole main contact arrangement and incorporates auxiliary contacts for control and signaling circuits. :contentReference[oaicite:3]{index=3}

The complete ABB identification number is 1SFL487002R1311, while AF190-30-11-13 is the corresponding extended product type.

Three-Pole Main Contact Configuration

ABB 1SFL487002R1311 has three main normally open contacts. The three poles are mechanically operated together by the contactor mechanism and are intended for switching three-phase power circuits. :contentReference[oaicite:4]{index=4}

The main circuit terminals use bars rather than conventional small cable screw terminals. This arrangement is suitable for the higher-current switching requirements associated with the AF190 contactor size.

Control Voltage Range

One of the defining characteristics of the AF190-30-11-13 is its wide control voltage range. ABB specifies a rated control circuit voltage of 100-250 V at 50 Hz, 100-250 V at 60 Hz and 100-250 V for DC operation. :contentReference[oaicite:5]{index=5}

The wide-range coil allows the same contactor version to operate across a broad control-voltage range without requiring separate AC and DC contactor versions for each voltage level.

ABB also specifies coil operating limits of approximately 0.85 times the rated control voltage minimum to 1.1 times the rated control voltage maximum under the applicable conditions. :contentReference[oaicite:6]{index=6}

Motor Control Application

The AF190-30-11-13 is suitable for motor starting and switching applications. ABB specifies an AC-3 operational power rating of up to 90 kW at 380/400 V AC, with other power ratings depending on the operating voltage. :contentReference[oaicite:7]{index=7}

The applicable current and power rating must always be selected according to the actual motor voltage, load category, ambient temperature and installation conditions.

AC-1 Current Rating

For resistive or less-demanding switching applications under AC-1 conditions, ABB specifies a conventional free-air thermal current of 275 A at 40°C and an AC-1 rated operational current of up to 275 A at 690 V and 40°C. At 1000 V and 40°C, the listed AC-1 current is 250 A. :contentReference[oaicite:8]{index=8}

The permissible current decreases with increasing ambient temperature. For example, at 1000 V the AC-1 current is specified as 250 A at 40°C, 225 A at 55°C and 185 A at 70°C. :contentReference[oaicite:9]{index=9}

AC-3 Current Rating

For motor switching under AC-3 conditions, ABB lists an operational current of 190 A at 220/230/240 V, 380/400 V and 415 V at 55°C. At 440 V, the corresponding value is also 190 A at 55°C. The AC-3 current changes according to operating voltage and temperature. :contentReference[oaicite:10]{index=10}

The AF190 designation therefore corresponds to a contactor frame designed for high-current motor-control applications rather than a small auxiliary switching device.

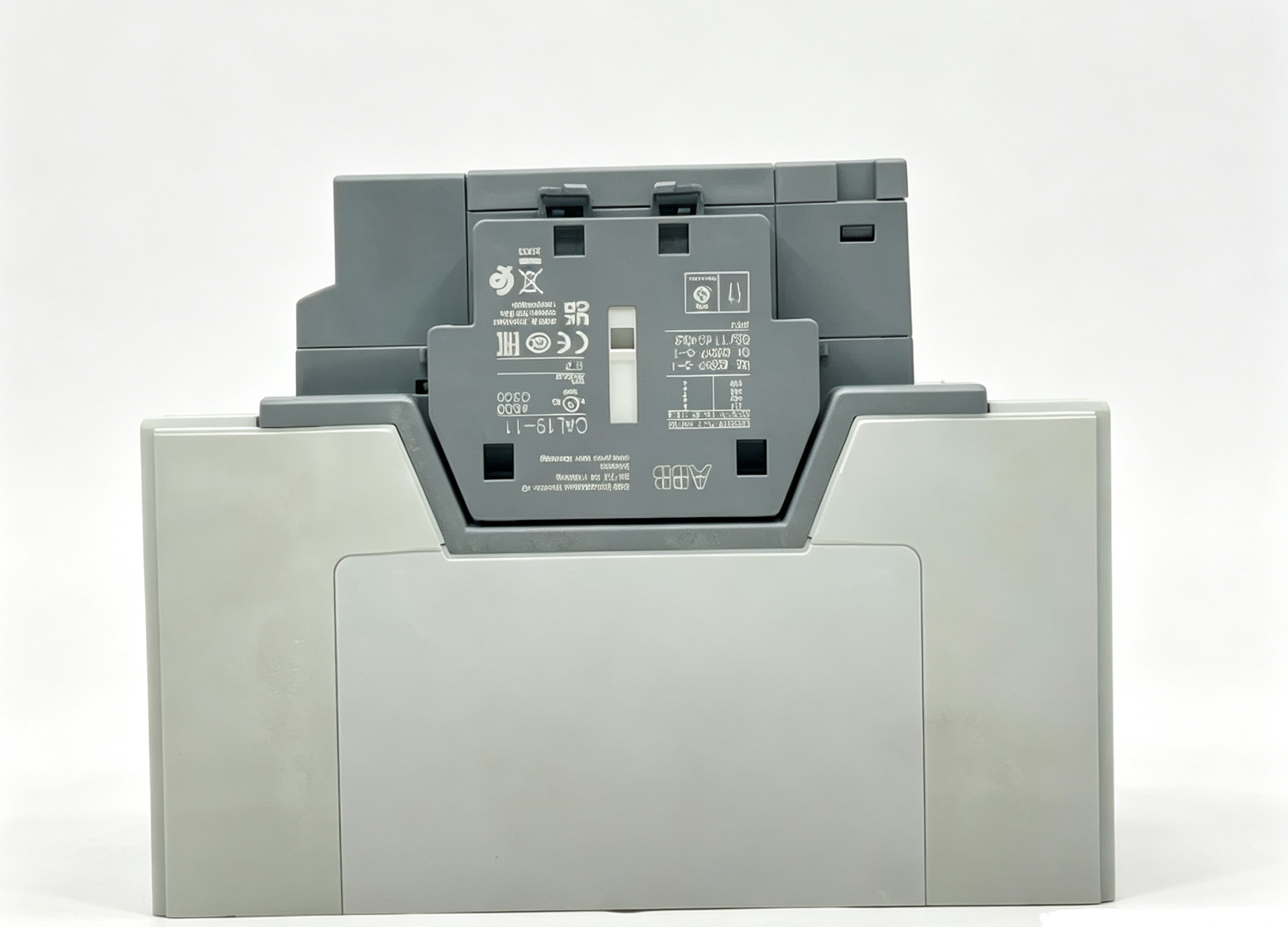

Auxiliary Contact Arrangement

ABB 1SFL487002R1311 is supplied with pre-mounted auxiliary contacts. The catalog specification lists one normally open auxiliary contact and one normally closed auxiliary contact. :contentReference[oaicite:11]{index=11}

These auxiliary contacts can be incorporated into control circuits, interlocking circuits, indication circuits or other control-system logic associated with the contactor.

Built-In Surge Protection

The AF contactor design incorporates built-in surge protection. This is part of the AF technology used to manage the contactor coil and reduce the effects associated with coil switching. :contentReference[oaicite:12]{index=12}

The integrated design helps keep the contactor’s control system compact while supporting operation across the wide 100-250 V AC/DC control range.

Main Circuit Voltage

ABB specifies a rated operational voltage of up to 1000 V for the main circuit according to IEC requirements. The UL/CSA maximum operating voltage is specified as 600 V. :contentReference[oaicite:13]{index=13}

The actual permissible switching application must be selected according to the applicable electrical standard, load category, voltage, current and installation environment.

Rated Insulation Voltage

The rated insulation voltage is specified as 1000 V according to IEC 60947-4-1 and VDE 0110 Group C. ABB lists 600 V according to UL/CSA requirements. :contentReference[oaicite:14]{index=14}

These values describe insulation-system ratings and should not be interpreted as a universal operating voltage for every application.

Short-Time Withstand Current

ABB provides short-time withstand current values for the AF190 contactor under specified ambient conditions. At 40°C in free air from a cold state, the listed values include 1520 A for 10 seconds, 621 A for one minute, 878 A for 30 seconds and 1900 A for one second. :contentReference[oaicite:15]{index=15}

These parameters are used when evaluating the contactor within a properly coordinated power-switching system.

Switching Frequency

ABB specifies a maximum mechanical switching frequency of 300 cycles per hour. The maximum electrical switching frequency is also listed as 300 cycles per hour for AC-1 and AC-3 applications, while AC-2 and AC-4 are listed at 150 cycles per hour. :contentReference[oaicite:16]{index=16}

The actual switching frequency should be selected according to the application category and the thermal and electrical conditions of the installation.

Mechanical Durability

The AF190-30-11-13 has a specified mechanical durability of approximately 5 million operations. :contentReference[oaicite:17]{index=17}

Mechanical durability represents the contactor’s mechanical operating capability under the conditions defined by the manufacturer and is distinct from electrical endurance under a particular load category.

Connection Capacity

ABB specifies bar terminals for the main circuit. The listed connection capacity includes flexible conductors of 2 × 50 to 95 mm², rigid aluminum conductors of 1 × 95 to 185 mm² and rigid copper conductors of 1 × 6 to 150 mm². :contentReference[oaicite:18]{index=18}

The applicable conductor type, cross-section and installation method should be selected according to the contactor’s technical instructions and the electrical installation requirements.

Technical Specification Summary

Dimensions and Weight

ABB lists the product dimensions at approximately 105 mm width, 152 mm depth and 196 mm height. The current ABB catalog data lists a product net weight of approximately 2.4 kg. :contentReference[oaicite:19]{index=19}

Packaging dimensions and weight are larger than the product itself and should not be used as the equipment installation dimensions.

Motor Starting Systems

The AF190-30-11-13 can be incorporated into motor starting systems where a high-current three-phase contactor is required. Its three main poles provide the switching path for the motor power circuit.

The auxiliary contacts can be used in the associated control circuit for feedback, interlocking or status indication.

For motor applications, selection should consider the motor’s rated power, operating voltage, starting characteristics, utilization category and expected switching frequency.

Isolation and Bypass Applications

In addition to motor starting, ABB identifies the AF190-30-11-13 for isolation and bypass applications. :contentReference[oaicite:20]{index=20}

The three-pole configuration allows the contactor to control the three phases of an electrical power circuit, while the auxiliary contacts can provide additional control-system information.

Distribution Applications

The AF190 contactor can also be used in power distribution switching applications within the limits of its electrical ratings.

The appropriate utilization category and current rating should be determined from the actual load rather than from the maximum catalog current alone.

Control Circuit Considerations

The 100-250 V AC/DC control range is one of the main identifying characteristics of ABB 1SFL487002R1311. The control voltage should be checked before installation to confirm compatibility with the existing control circuit. :contentReference[oaicite:21]{index=21}

Because the coil accepts both AC and DC operation within its specified range, the contactor can be incorporated into different control architectures using the appropriate control voltage.

Environmental Conditions

ABB specifies different ambient temperature ranges depending on whether the contactor is fitted with a thermal overload relay. Without a thermal overload relay, the listed operating range close to the contactor is approximately -40°C to +70°C. With a thermal overload relay, the listed range is approximately -25°C to +50°C. :contentReference[oaicite:22]{index=22}

The applicable temperature limits should be evaluated together with the complete installation and associated accessories.

Altitude

The maximum permissible operating altitude specified by ABB is 3000 m. :contentReference[oaicite:23]{index=23}

For installations above the specified altitude, the applicable derating and technical requirements should be confirmed before selecting the contactor.

Protection Degree

ABB specifies IP20 protection for the coil terminals and IP00 for the main terminals according to the applicable IEC standards. :contentReference[oaicite:24]{index=24}

The contactor should therefore be installed within an enclosure or electrical system that provides the required protection for the application.

Maintenance Considerations

Maintenance of ABB 1SFL487002R1311 should include inspection of the main terminals, auxiliary contacts, control connections and mechanical operating mechanism.

The contactor should be isolated from the electrical supply before maintenance. Inspection intervals should be determined according to the switching duty, environmental conditions and operating requirements of the installation.

The condition of the contact surfaces and mechanical mechanism should be evaluated according to the applicable ABB maintenance instructions.

Compatibility Verification

Before selecting ABB 1SFL487002R1311, the following parameters should be verified:

• ABB part number: 1SFL487002R1311
• Contactor type: AF190-30-11-13
• Three-pole configuration
• Control voltage: 100-250 V AC/DC
• Required AC-1 or AC-3 current rating
• Motor power and operating voltage
• Main circuit terminal arrangement
• Auxiliary contact requirements
• Installation dimensions
• Applicable electrical standards

Correct identification is particularly important because AF contactors are available in multiple frame sizes and control-voltage configurations.

Product Identification for Inventory

For industrial inventory records, the recommended product description is ABB 1SFL487002R1311 AF190-30-11-13 Contactor.

Additional searchable descriptions can include ABB AF190-30-11-13, ABB AF190 190A Contactor, ABB 1SFL487002R1311 3-Pole Contactor and ABB 100-250V AC/DC Contactor.

The complete product identification number 1SFL487002R1311 should remain the primary reference when matching technical documentation and inventory records.

Application Summary

ABB 1SFL487002R1311 is the AF190-30-11-13 three-pole contactor for high-current switching applications. It combines three main normally open contacts, pre-mounted 1 NO + 1 NC auxiliary contacts, main circuit bars and a 100-250 V AC/DC control circuit. :contentReference[oaicite:25]{index=25}

The contactor supports motor starting, isolation, bypass and distribution applications. Its IEC main circuit operational voltage is rated up to 1000 V, while the AC-3 motor control capability reaches 90 kW at 380/400 V under the specified conditions. :contentReference[oaicite:26]{index=26}

Conclusion

ABB 1SFL487002R1311 is the AF190-30-11-13 Contactor, a three-pole AF-series contactor with a 100-250 V AC/DC control voltage range. It is designed for high-current motor and power switching applications and provides three main normally open contacts together with pre-mounted auxiliary contacts. :contentReference[oaicite:27]{index=27}

The recommended technical product name is ABB 1SFL487002R1311 AF190-30-11-13 3-Pole Contactor. When identifying or replacing this component, the complete part number, control voltage, load category, current rating and installation requirements should be verified.
