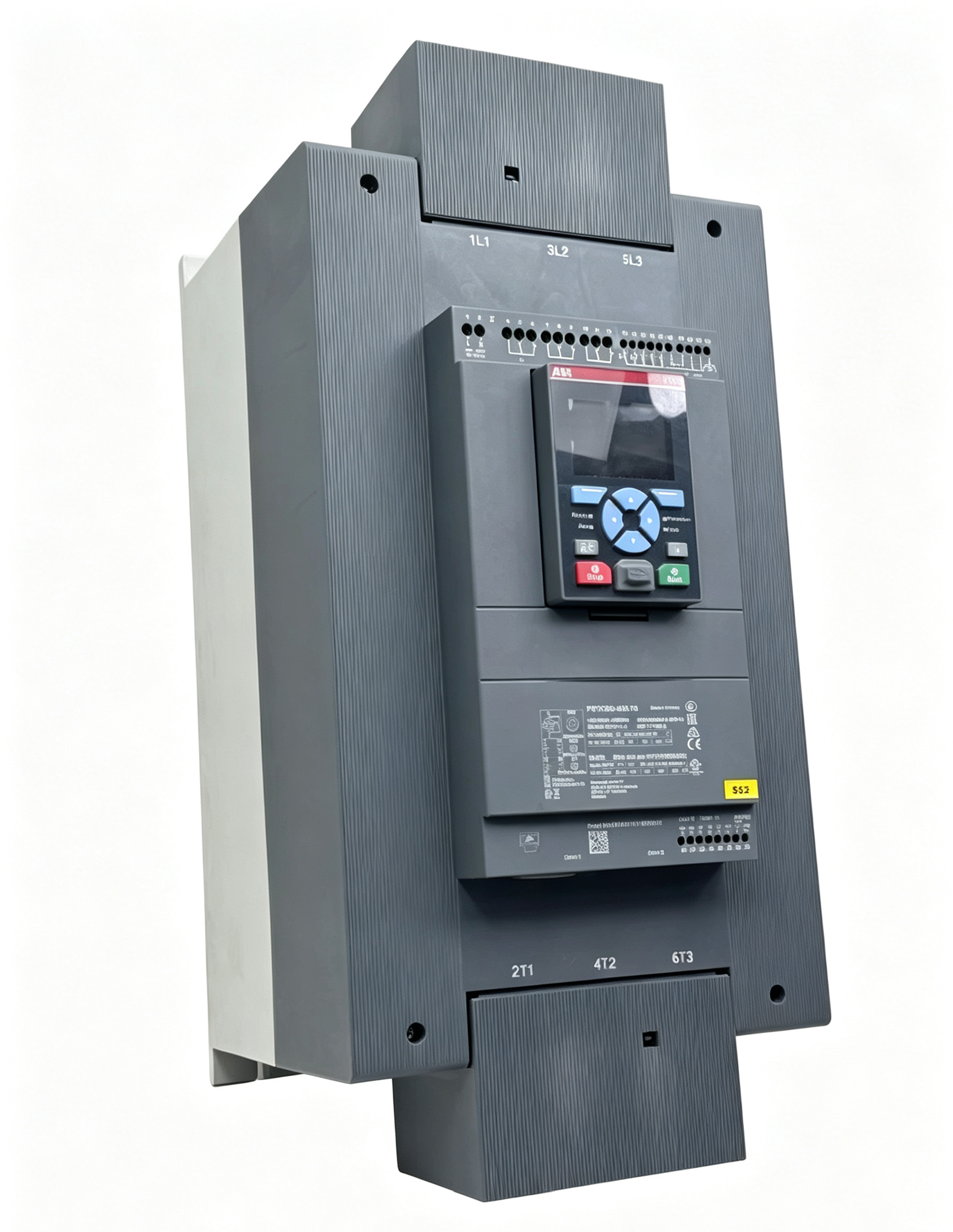

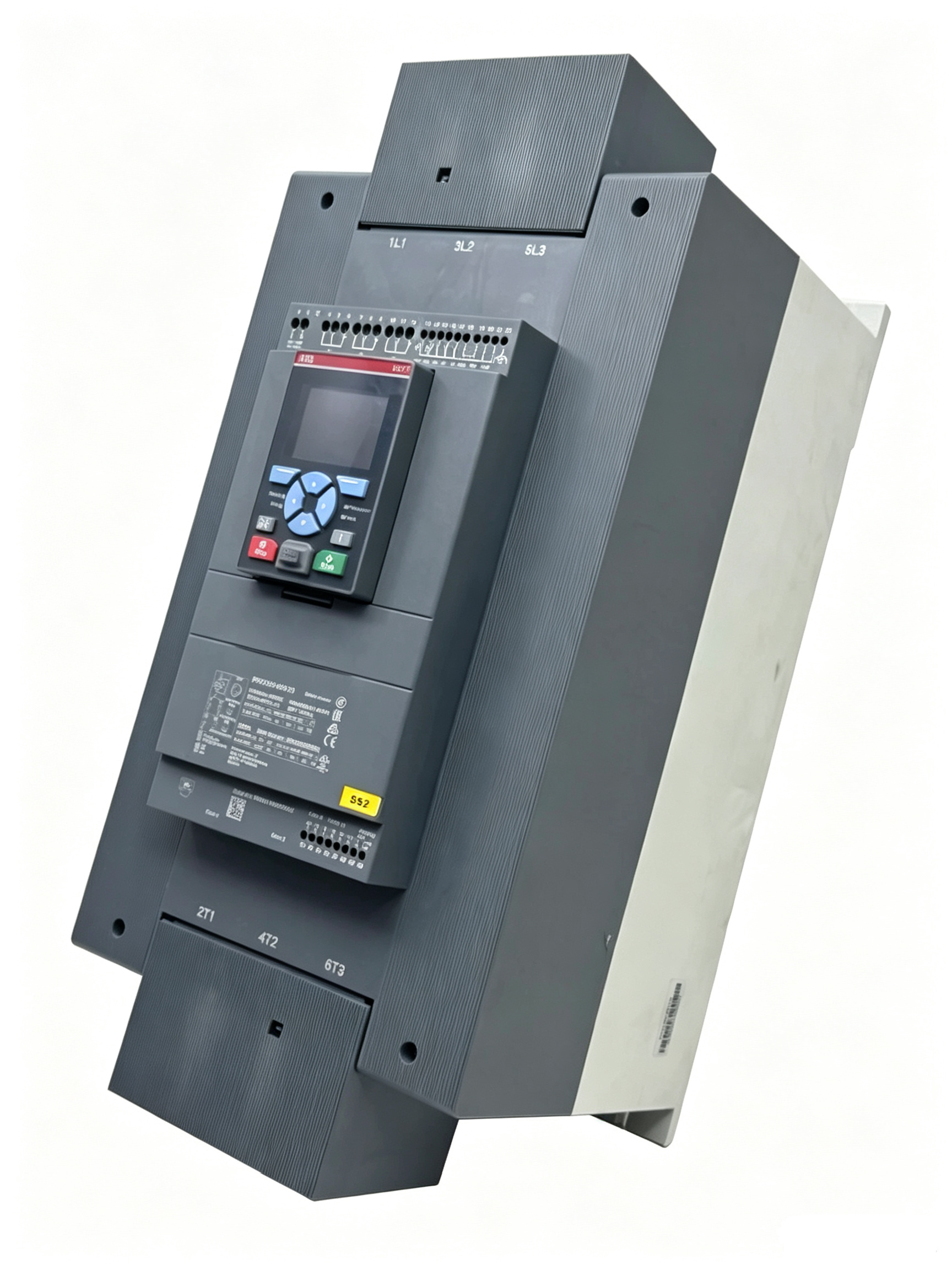

ABB 1SFA898114R7000 PSTX300-600-70 Softstarter

Product Overview

ABB 1SFA898114R7000 is a PSTX300-600-70 softstarter designed for advanced three-phase motor control applications. It belongs to ABB’s PSTX series, a high-performance softstarter platform developed for improving motor starting, stopping, protection and operational efficiency in industrial environments.

The softstarter provides controlled acceleration and deceleration of electric motors by regulating voltage during the starting and stopping process. This reduces mechanical stress on motors and connected equipment while helping improve system reliability and operational stability.

ABB 1SFA898114R7000 is designed for applications requiring powerful motor control capability. The device supports a main operational voltage range of 208–600 V AC, a rated operational current of 300 A, and a control supply voltage range of 100–250 V AC. It is suitable for large industrial motors used in demanding automation and process applications. :contentReference[oaicite:2]{index=2}

Product Features

ABB PSTX300-600-70 integrates multiple motor control and protection functions into a single compact solution. The device combines soft starting technology with intelligent monitoring functions, helping engineers achieve efficient motor operation and improved system protection.

• Manufacturer: ABB
• Product ID: 1SFA898114R7000
• Type designation: PSTX300-600-70
• Product type: Softstarter
• Rated operational current: 300 A
• Main circuit voltage: 208–600 V AC
• Control supply voltage: 100–250 V AC
• Three-phase motor control design
• Built-in bypass function
• Integrated electronic motor overload protection

The PSTX series provides advanced control features including current limitation, torque control, motor protection and communication capability. These functions make ABB 1SFA898114R7000 suitable for applications where precise motor management is required. :contentReference[oaicite:3]{index=3}

Technical Specifications

ABB 1SFA898114R7000 PSTX300-600-70 is engineered for high-power motor applications. The device supports different connection methods, including standard in-line connection and inside-delta connection, providing flexibility for various motor installation requirements.

• Rated operational voltage (Ue): 208–600 V AC
• Rated operational current (Ie): 300 A
• Rated control supply voltage (Us): 100–250 V AC, 50/60 Hz
• Rated control circuit voltage: 24 V DC
• Rated frequency: 50/60 Hz
• Motor power at 400 V in-line connection: 160 kW
• Motor power inside delta connection at 400 V: 257 kW
• Protection functions: Electronic overload protection
• Communication: Modbus RTU and industrial communication support

The advanced electrical design allows the softstarter to manage high-current motor applications while maintaining stable control performance. The integrated bypass function helps reduce energy losses during normal motor operation after the starting process has completed. :contentReference[oaicite:4]{index=4}

Motor Starting and Control Technology

Traditional direct motor starting methods can create high starting currents and mechanical stress. ABB 1SFA898114R7000 provides controlled motor acceleration by gradually increasing voltage supplied to the motor, reducing electrical impact on the power system.

The PSTX softstarter allows engineers to configure starting parameters according to different motor and application requirements. Adjustable ramp times, current limitation and torque control functions provide greater flexibility for industrial equipment operation.

During motor stopping, the softstarter can also control the deceleration process, reducing sudden mechanical changes and improving equipment operating performance. This is especially beneficial for applications involving pumps, fans, compressors and conveyors.

Application Areas

ABB 1SFA898114R7000 is widely used in industrial automation systems requiring reliable motor starting and protection. Its advanced functions make it suitable for industries where motor availability and process stability are important.

Typical applications include industrial pumps, ventilation systems, compressors, conveyors, water treatment equipment, production machinery and large mechanical drive systems.

In manufacturing environments, the softstarter helps reduce mechanical wear caused by sudden motor acceleration. In process industries, it improves equipment stability and supports continuous operation of critical motor-driven systems.

ABB PSTX Series Advantages

The ABB PSTX series represents ABB’s advanced generation of softstarter technology. It combines motor control, protection and monitoring functions into a single integrated device, reducing the need for additional external components.

ABB PSTX products provide features such as built-in bypass, graphical display, configurable protection functions and communication interfaces. These functions simplify commissioning, operation and maintenance of industrial motor systems. :contentReference[oaicite:5]{index=5}

The integrated design improves system organization and helps engineers create more efficient electrical control solutions. ABB 1SFA898114R7000 is designed to provide dependable motor management performance in complex industrial environments.

Installation and System Integration

ABB 1SFA898114R7000 features a professional industrial design suitable for installation inside electrical control cabinets. The compact structure allows efficient integration into motor control centers and automation panels.

The device supports flexible configuration and can be connected with modern industrial communication systems for monitoring and control. The detachable graphical display provides convenient parameter setup and operational information access.

With integrated protection functions, the softstarter helps simplify system design by reducing the number of external motor protection components required.

Reliability and Protection Functions

Motor protection is an essential part of industrial automation systems. ABB 1SFA898114R7000 provides electronic overload protection and monitoring functions to help protect motors from abnormal operating conditions.

The device continuously manages motor starting conditions and operating parameters, helping reduce risks caused by excessive current, mechanical stress and improper operation.

ABB engineering standards ensure that PSTX softstarters provide stable performance for demanding industrial applications requiring reliable motor control.

Conclusion

ABB 1SFA898114R7000 PSTX300-600-70 softstarter is an advanced motor control solution designed for three-phase industrial motor applications. With 300 A rated current, 208–600 V AC operating voltage range, integrated bypass, motor protection and intelligent control functions, it provides efficient and reliable motor starting performance.

Combining ABB’s advanced PSTX technology with flexible application capability, ABB 1SFA898114R7000 is suitable for industrial automation systems, process equipment and large motor applications requiring precise control, protection and long-term operational stability.
