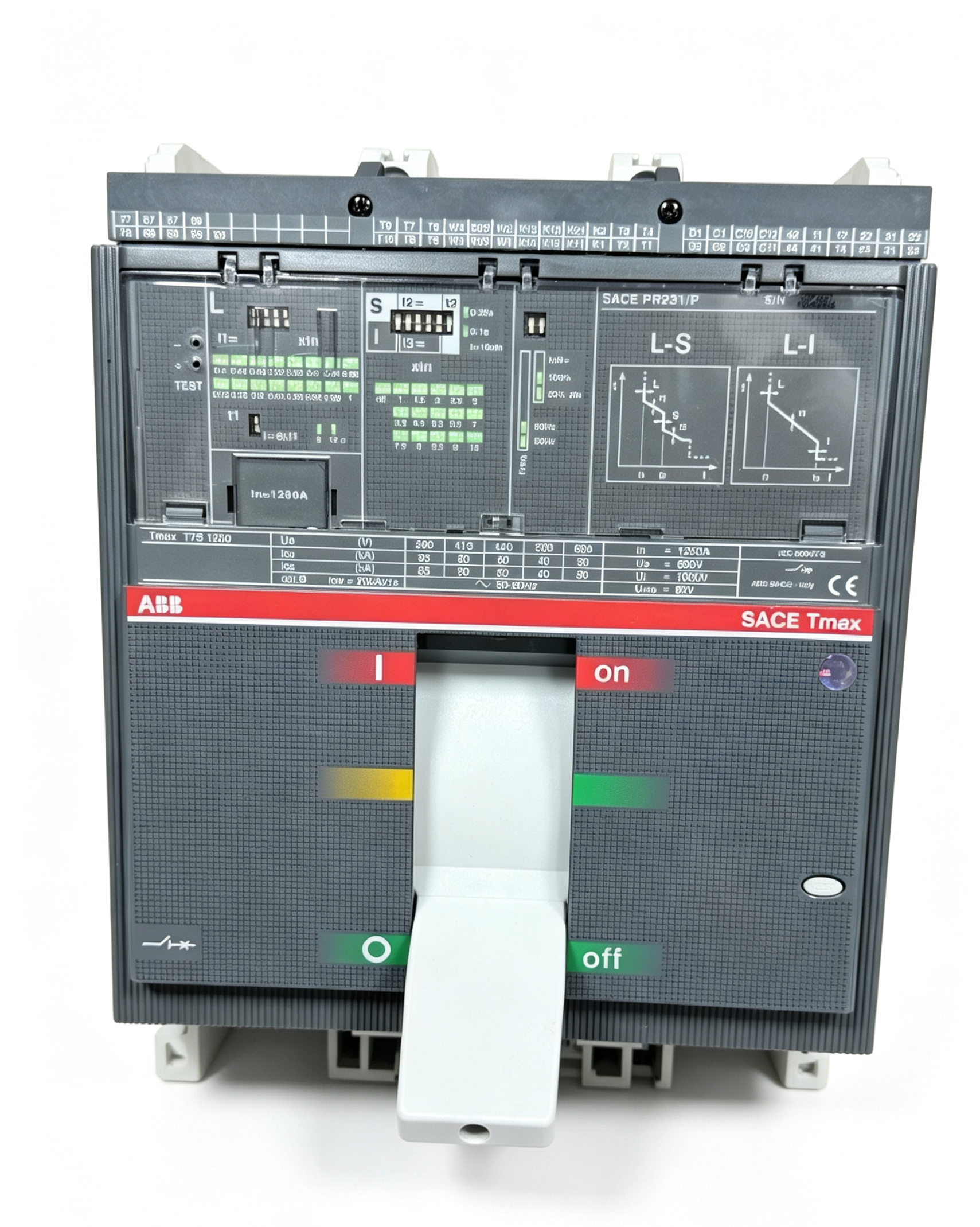

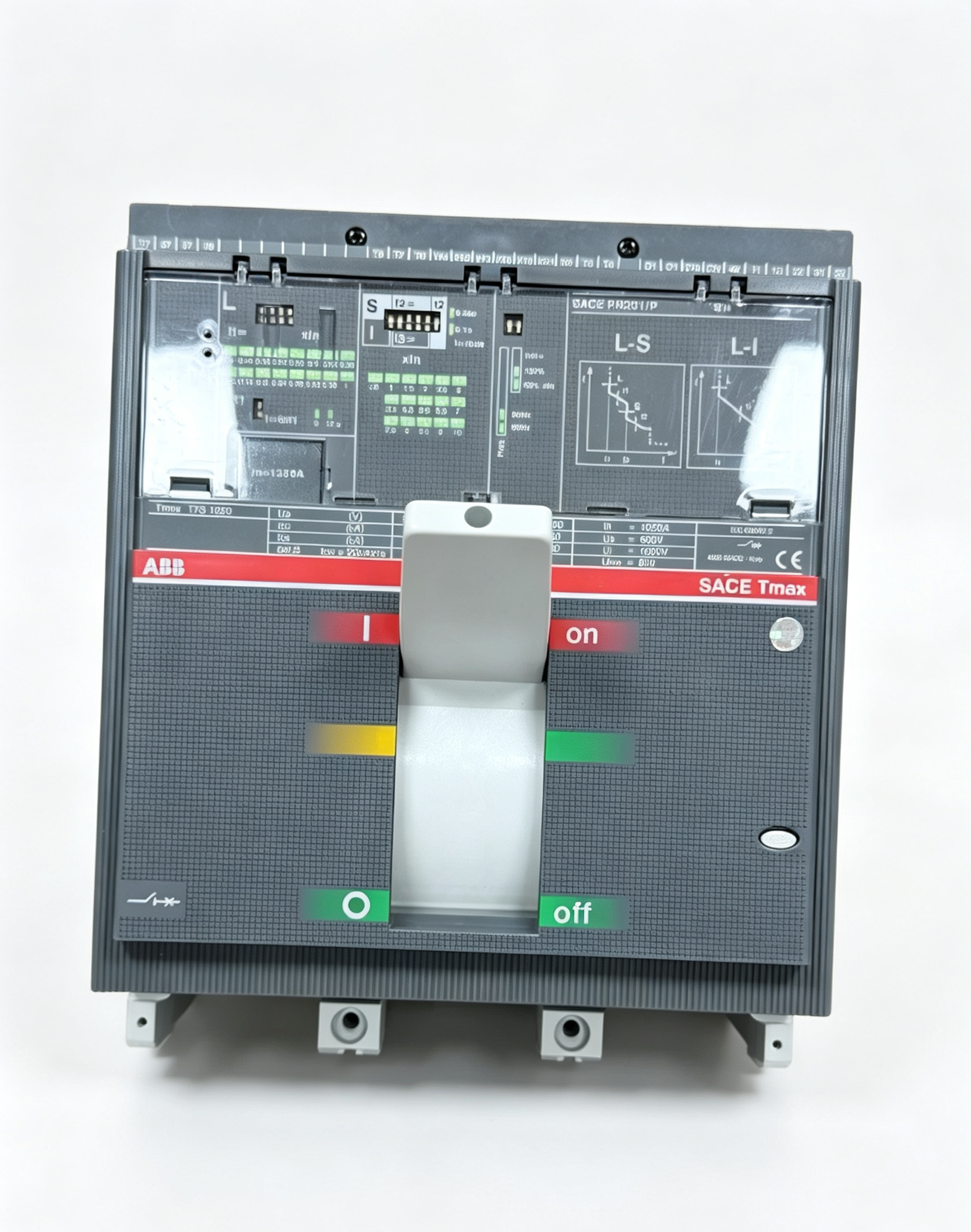

ABB 1SDA062870R1 TMAX T7S 1250A 3-Pole Circuit Breaker with PR332/P-LSI Electronic Trip Unit

ABB 1SDA062870R1 Product Overview

The ABB 1SDA062870R1 forms part of the ABB TMAX T7 family of moulded case circuit
breakers. TMAX circuit breakers are designed for protection and switching functions
in low-voltage electrical installations. Different frame sizes, current ratings,
trip units, terminal configurations, and installation versions are available within
the product family.

The T7S 1250 configuration represented by 1SDA062870R1 is intended for high-current
applications. Its 1250 A rated continuous current allows it to be integrated into
electrical distribution systems where feeders or equipment require substantial
current capacity.

The fixed three-pole configuration provides three main current paths within the
circuit breaker. The front-terminal arrangement positions the main connection
points at the front of the breaker, which can simplify the integration of the
device into appropriately designed switchboards and distribution equipment.

TMAX T7S 1250 Circuit Breaker

The T7S designation identifies the specific TMAX breaker family and frame class,
while 1250 indicates the rated current class. The circuit breaker has a nominal
continuous current of 1250 A and is designed for electrical distribution systems
requiring high-current protection.

ABB documentation identifies the 1SDA062870R1 as a fixed three-pole T7S breaker with
a manual operating mechanism and front terminals. This configuration is different
from motorized or withdrawable versions of the T7 family, making the complete
product designation important when selecting the correct configuration for an
existing installation.

The T7S 1250 platform is suitable for use in power distribution applications where
circuit protection must be coordinated with the characteristics of the upstream
supply, downstream equipment, cables, busbars, and other protective devices.

PR332/P-LSI Electronic Trip Unit

One of the defining characteristics of ABB 1SDA062870R1 is its PR332/P-LSI
electronic trip unit. The electronic release provides adjustable protection
functions that allow the breaker to respond to different types of overcurrent
conditions.

The LSI designation represents long-time, short-time, and instantaneous protection
functions. Long-time protection is associated with sustained overload conditions,
while short-time protection addresses higher current conditions with a defined
delay. Instantaneous protection provides rapid response to severe short-circuit
current conditions.

ABB product information identifies the thermal or long-time adjustment range for
the PR332/P-LSI configuration as 0.4 to 1 times the rated current. The magnetic
or instantaneous adjustment is specified from 1.5 to 15 times the rated current.
These adjustable settings allow the protection system to be configured according
to the characteristics of the electrical installation.

Protection settings should always be established by qualified personnel according
to the electrical design, fault-current calculations, coordination requirements,
conductor ratings, and applicable installation standards.

High Short-Circuit Breaking Capability

The ABB 1SDA062870R1 provides different short-circuit breaking capabilities depending
on the operating voltage. ABB product information identifies an ultimate short-circuit
breaking capacity of 85 kA at 220/230 V AC, 50 kA at 380/415 V AC, 50 kA at 440 V AC,
40 kA at 500 V AC, and 30 kA at 690 V AC.

These voltage-dependent values are important when evaluating the suitability of the
circuit breaker for a particular distribution system. The available short-circuit
capacity must be compared with the prospective short-circuit current at the point
where the breaker is installed.

A circuit breaker should never be selected only according to its nominal current.
Rated operational voltage, short-circuit conditions, system configuration, protection
coordination, installation environment, and applicable electrical standards must
also be considered.

Technical Specifications

Fixed Front-Terminal Configuration

The 1SDA062870R1 uses a fixed installation configuration. In a fixed circuit breaker,
the main body remains installed in its designated mounting position rather than
using a withdrawable mechanism. This configuration is commonly integrated into
switchboards where the breaker is intended to remain in a defined electrical
position.

The front-terminal arrangement provides the main connection points at the front of
the breaker. This is an important mechanical characteristic because terminal
orientation affects busbar and cable arrangement, switchboard design, clearances,
and maintenance access.

The complete “3p F F” designation is therefore significant. It identifies a
three-pole fixed breaker with front-terminal configuration and should be retained
when comparing the product with related T7S 1250 versions.

Protection for Power Distribution

The TMAX T7S family is designed for applications including power distribution and
equipment protection. The 1250 A rating allows the 1SDA062870R1 to be used in
substantial distribution feeders where high current capacity is required.

The electronic PR332/P-LSI trip unit allows protection parameters to be adjusted
according to the electrical system. This is particularly useful in distribution
systems where selective coordination between upstream and downstream protective
devices is required.

Long-time, short-time, and instantaneous functions can be configured to correspond
with the characteristics of the protected circuit. Proper coordination helps
limit unnecessary interruption of healthy sections of the electrical installation
while maintaining protection against overload and short-circuit conditions.

Mechanical and Electrical Durability

Product information for ABB 1SDA062870R1 specifies mechanical durability of
approximately 10,000 operating cycles at 60 cycles per hour. Electrical durability
is specified at approximately 2,000 operating cycles under the corresponding
test conditions.

Mechanical and electrical endurance are different characteristics. Mechanical
durability relates to the operating mechanism and mechanical switching capability,
while electrical durability is associated with switching under electrical loading
conditions.

These ratings provide useful information when evaluating the expected operating
requirements of a distribution system. Actual service conditions, switching
frequency, load current, fault events, and maintenance practices can influence
the practical operating life of the equipment.

Dimensions and Installation

The documented product dimensions for ABB 1SDA062870R1 are approximately 210 mm in
width, 268 mm in height, and 154 mm in depth. The product net weight is approximately
9.7 kg.

These dimensions should be considered when designing or modifying a switchboard,
distribution cabinet, or other electrical enclosure. Installation must also provide
appropriate clearances, terminal access, conductor routing, mechanical support,
grounding, and thermal conditions according to the applicable ABB installation
documentation.

Physical dimensions alone are not sufficient for determining interchangeability.
The exact breaker family, frame size, trip-unit configuration, terminal arrangement,
number of poles, and installation version should all match the intended system.

Industrial Applications

ABB 1SDA062870R1 can be applied in high-current low-voltage distribution systems
where a 1250 A moulded case circuit breaker is required. Typical application areas
can include industrial distribution boards, plant electrical systems, large
equipment feeders, power distribution sections, and other installations requiring
electronic overcurrent protection.

The PR332/P-LSI electronic release makes the breaker suitable for systems where
adjustable protection characteristics are required. Its three-pole construction
is appropriate for three-phase distribution arrangements where the protected
circuit does not require a four-pole neutral switching configuration.

The actual application should always be evaluated against system voltage,
prospective fault current, continuous load current, conductor ratings, protection
coordination, environmental conditions, and the applicable electrical standards.

Product Identification

The complete identification of this product is ABB 1SDA062870R1, T7S 1250,
PR332/P LSI, In=1250A, 3 poles, fixed installation, front terminals. This
combination of identifiers provides a precise description of the circuit breaker
configuration.

The ABB part number should be used when searching for technical documentation,
engineering records, equipment databases, and compatible accessories. The T7S
frame designation alone is not sufficient because multiple T7S 1250 configurations
are available with different trip units, pole configurations, terminal arrangements,
and operating mechanisms.

Correct identification is especially important when the circuit breaker is being
integrated into an existing distribution system. A product with the same current
rating may still have different protection functions or mechanical characteristics.

Conclusion

ABB 1SDA062870R1 is a TMAX T7S 1250 moulded case circuit breaker configured with
three poles, fixed installation, front terminals, manual operation, and a
PR332/P-LSI electronic trip unit. Its 1250 A rated current places it within the
high-current segment of the TMAX T7S family.

The PR332/P-LSI release provides long-time, short-time, and instantaneous protection
functions with adjustable settings. The breaker also provides voltage-dependent
short-circuit breaking capabilities, including up to 50 kA at 380/415 V AC and
30 kA at 690 V AC according to the documented configuration.

With its fixed three-pole construction, front-terminal arrangement, electronic
protection unit, and high current capacity, the ABB 1SDA062870R1 is designed for
demanding low-voltage power distribution and equipment protection applications.
Correct selection should always be based on the complete electrical and mechanical
requirements of the intended installation rather than current rating alone.
