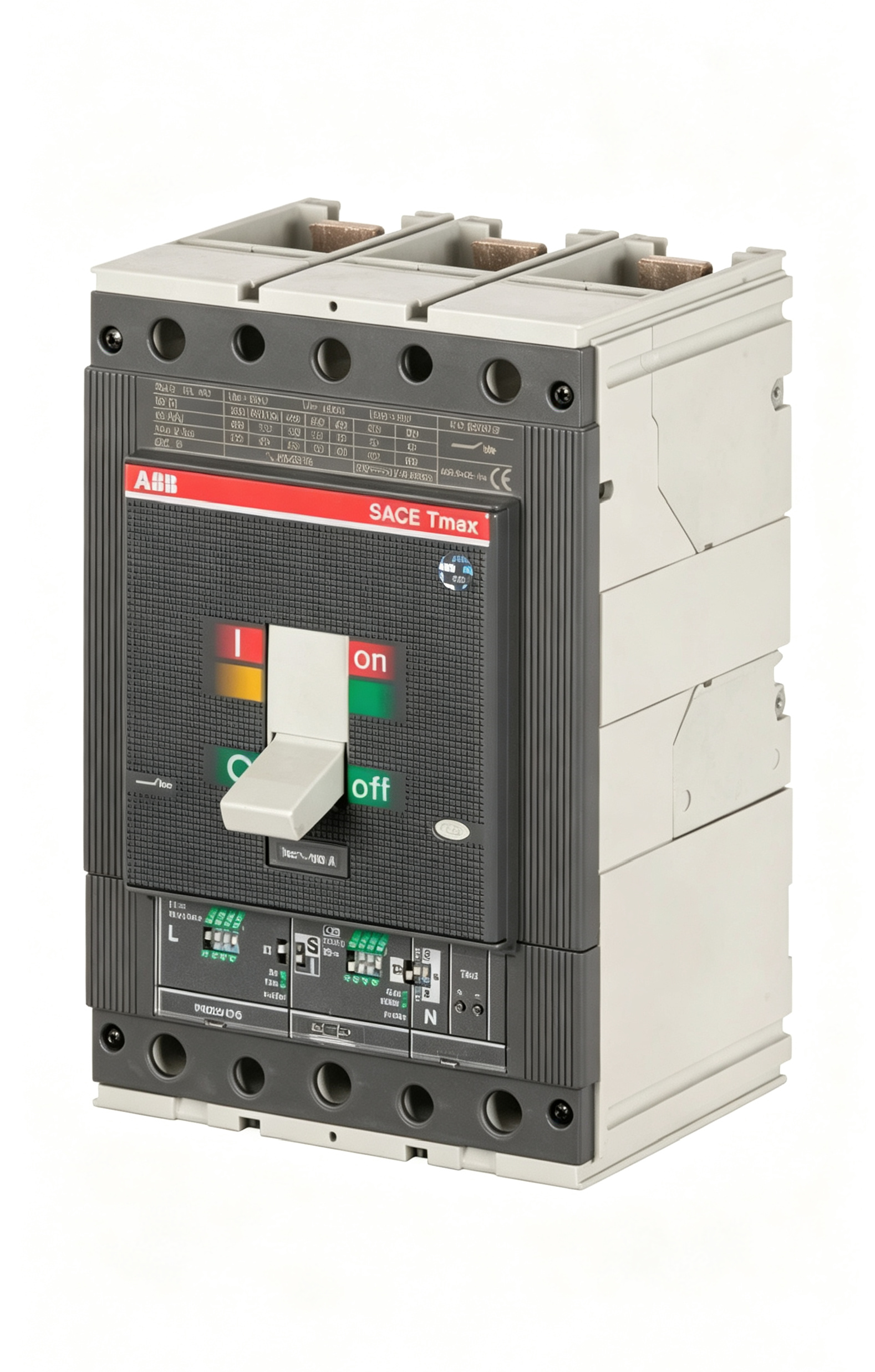

ABB 1SDA054332R0001 T5S 400 PR221DS-LS/I Circuit Breaker

The ABB 1SDA054332R0001 is a T5S 400 series molded case circuit breaker designed for industrial power distribution and electrical protection applications. Equipped with the PR221DS-LS/I electronic trip unit, this circuit breaker provides advanced protection functions for overload and short-circuit conditions, helping maintain the safety and reliability of electrical systems.

As part of ABB’s Tmax T family, the ABB 1SDA054332R0001 combines compact construction, high breaking performance and intelligent protection technology. It is designed for applications where dependable circuit protection, accurate fault response and efficient system operation are required.

Modern industrial facilities depend on reliable protection devices to prevent equipment damage caused by abnormal electrical conditions. Circuit breakers such as the ABB T5S 400 protect cables, motors, distribution equipment and industrial machinery by quickly interrupting dangerous fault currents while maintaining system availability.

The ABB 1SDA054332R0001 belongs to the Tmax T5S 400 PR221DS-LS/I product family. It is a three-pole fixed circuit breaker with front terminals and an electronic protection release. The unit is rated at 320A and designed for industrial electrical installations requiring accurate protection management. :contentReference[oaicite:2]{index=2}

Product Overview

ABB 1SDA054332R0001 is a molded case circuit breaker developed for low-voltage power distribution systems. The device uses ABB’s Tmax technology platform, which is widely applied in industrial plants, commercial buildings, energy facilities and automation systems.

The T5S 400 frame size provides a robust solution for medium-power electrical protection applications. With a rated continuous current of 400A frame size and an adjustable protection setting up to 320A, the circuit breaker can be configured according to different installation requirements. :contentReference[oaicite:3]{index=3}

The integrated PR221DS-LS/I electronic trip unit provides long-time and instantaneous protection functions. This allows the breaker to respond accurately to overload situations and short-circuit events, improving electrical system safety.

Unlike traditional thermal-magnetic protection devices, electronic trip units provide improved accuracy and flexibility. Parameters can be adjusted according to system characteristics, allowing engineers to optimize protection coordination between different electrical devices.

Main Functions and Features

The primary function of the ABB 1SDA054332R0001 is to protect electrical circuits against excessive current conditions. When an overload or short circuit occurs, the electronic trip mechanism detects abnormal conditions and activates the opening mechanism to disconnect the affected circuit.

The PR221DS-LS/I protection unit provides long-time overload protection and instantaneous short-circuit protection. This combination allows the breaker to protect both cables and connected electrical equipment from thermal and electrical damage.

The circuit breaker supports a rated operational voltage of up to 690V and features three poles for three-phase electrical systems. It is suitable for industrial distribution networks where reliable interruption capability and compact installation are important. :contentReference[oaicite:4]{index=4}

The fixed front connection design simplifies installation in electrical panels and switchboards. The compact structure of the Tmax series allows efficient use of cabinet space while maintaining high electrical performance.

Technical Characteristics

The ABB 1SDA054332R0001 T5S 400 PR221DS-LS/I includes the following main technical characteristics:

• Product series: ABB Tmax T5S
• Protection unit: PR221DS-LS/I electronic trip unit
• Number of poles: 3 poles
• Rated frame current: 400A
• Rated current setting: 320A
• Rated operational voltage: up to 690V AC
• Short-circuit protection function: Instantaneous protection
• Mounting type: Fixed installation

The breaker is designed for professional industrial environments where reliable power protection is required. Its electronic protection system improves accuracy compared with conventional protection methods and allows better coordination with upstream and downstream electrical devices.

Industrial Applications

ABB 1SDA054332R0001 is widely used in industrial power distribution systems, automation facilities and electrical control installations. Typical applications include factory power distribution, motor control centers, machinery protection and industrial switchboards.

In manufacturing plants, electrical equipment requires continuous protection against overload and fault conditions. The ABB T5S 400 circuit breaker provides a reliable protection solution for production equipment, ensuring that electrical faults are isolated quickly.

For motor control applications, circuit breakers are essential for protecting motors and associated electrical circuits. The adjustable protection characteristics of the PR221DS-LS/I unit allow engineers to configure protection settings according to motor and system requirements.

The breaker is also suitable for infrastructure applications where reliable electrical distribution is required, including commercial facilities, energy systems and industrial installations.

Advantages of ABB 1SDA054332R0001

One major advantage of the ABB 1SDA054332R0001 is its advanced electronic protection capability. The PR221DS-LS/I trip unit provides accurate fault detection and improves overall electrical system protection.

Another advantage is ABB’s Tmax modular design concept. The T series circuit breakers are designed to provide flexibility, allowing engineers to select different protection configurations according to application requirements.

The compact size of the breaker helps reduce panel space requirements while maintaining strong electrical performance. This makes it suitable for modern electrical cabinets where installation efficiency is important.

The ABB 1SDA054332R0001 also provides long-term reliability through ABB’s experience in electrical protection technology. It is designed for demanding industrial environments where stable operation and safety are critical.

Protection Technology and System Reliability

Electrical protection devices play an essential role in maintaining the stability of industrial power systems. A properly selected circuit breaker prevents electrical faults from spreading and protects valuable equipment from damage.

The ABB 1SDA054332R0001 uses electronic protection technology to improve response accuracy and system coordination. This allows engineers to design safer and more efficient power distribution networks.

In complex industrial environments, protection coordination between multiple breakers is important. The adjustable characteristics of the PR221DS-LS/I unit help optimize system performance and reduce unnecessary interruptions.

Conclusion

The ABB 1SDA054332R0001 T5S 400 PR221DS-LS/I Circuit Breaker is a high-performance molded case circuit breaker designed for industrial power distribution and electrical protection applications. With three poles, 320A rated current setting, electronic protection functions and ABB Tmax technology, it provides reliable protection for modern electrical systems.

For industrial facilities requiring accurate overload protection, short-circuit protection and dependable power management, the ABB 1SDA054332R0001 offers an efficient and flexible circuit protection solution.
