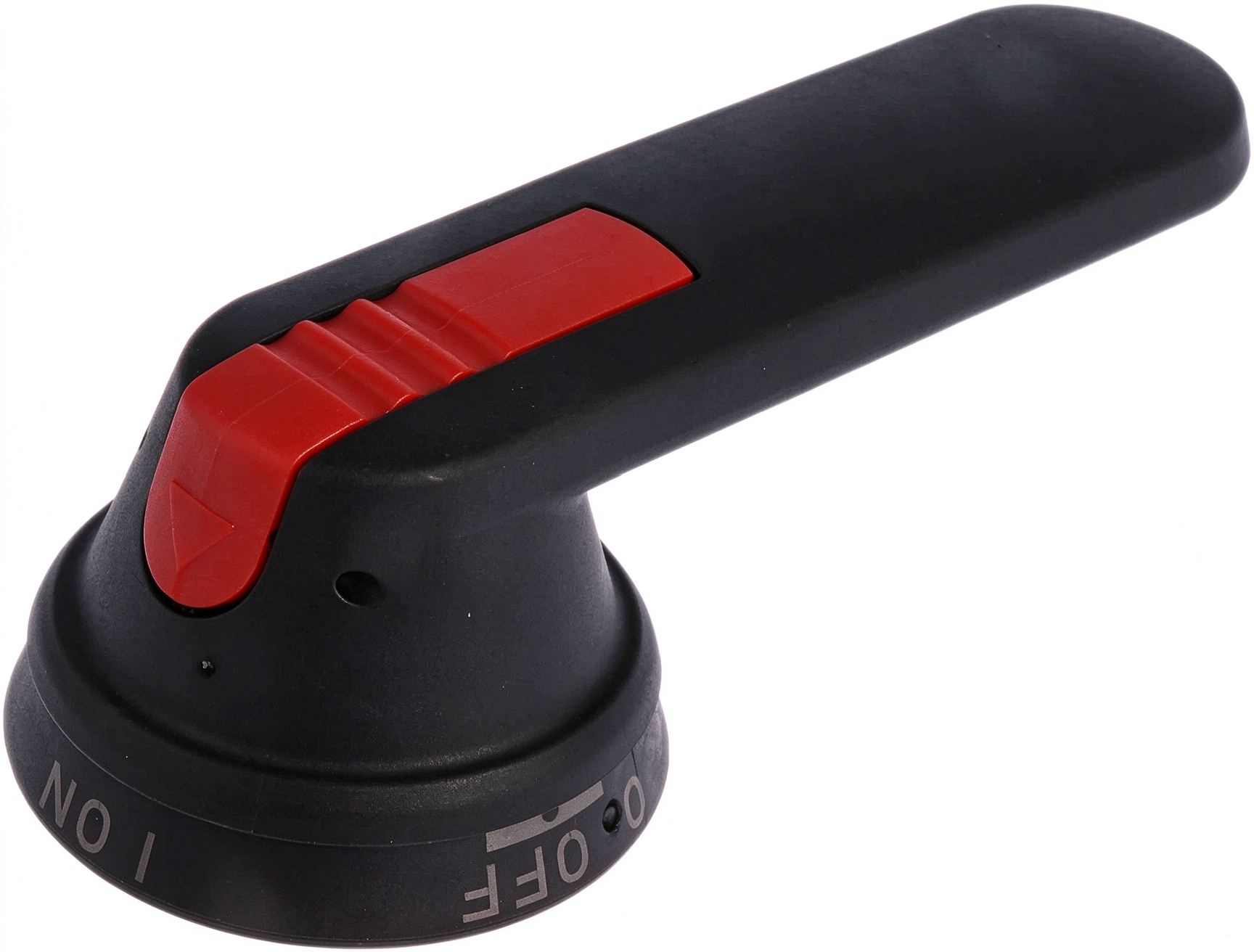

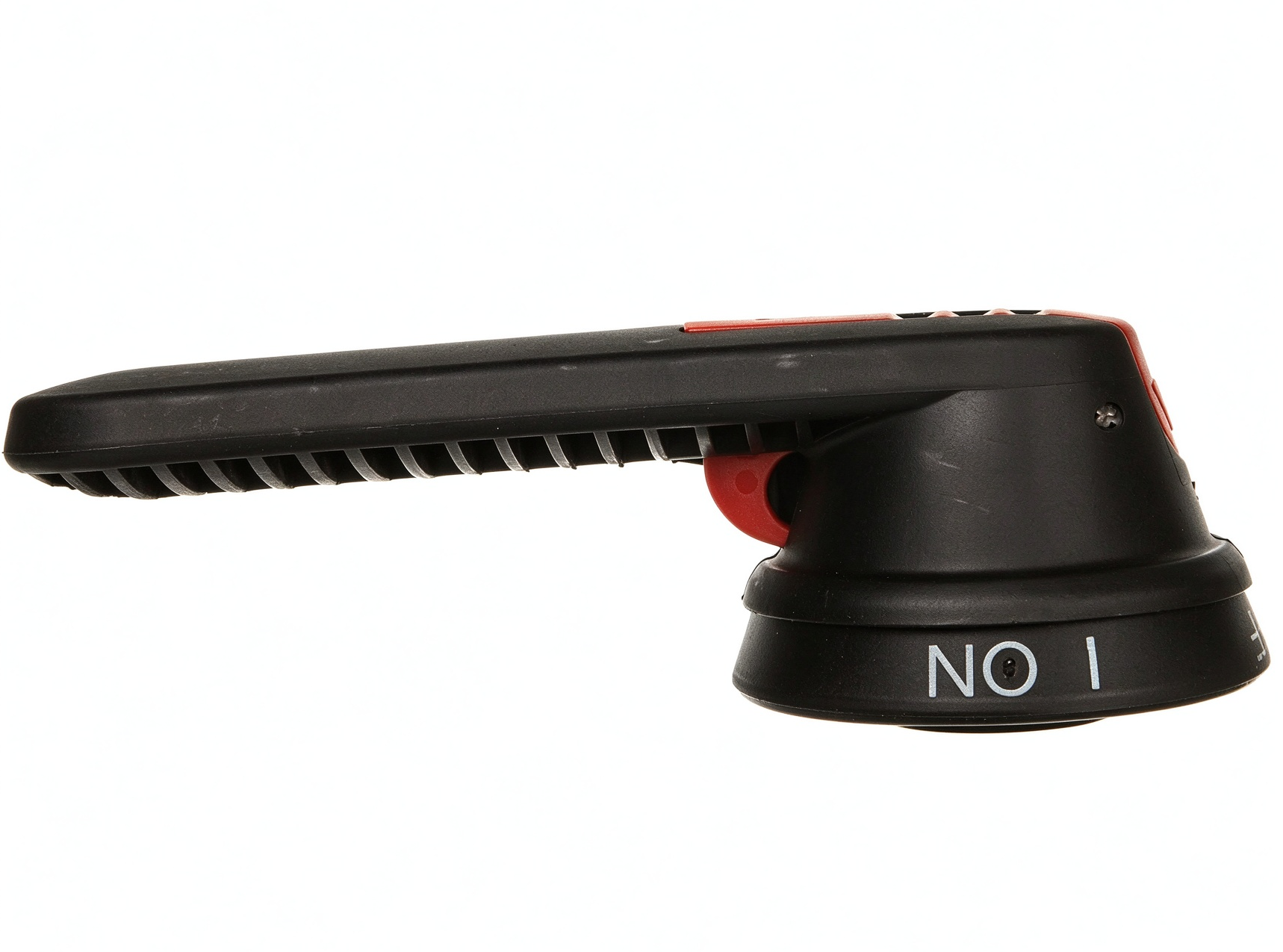

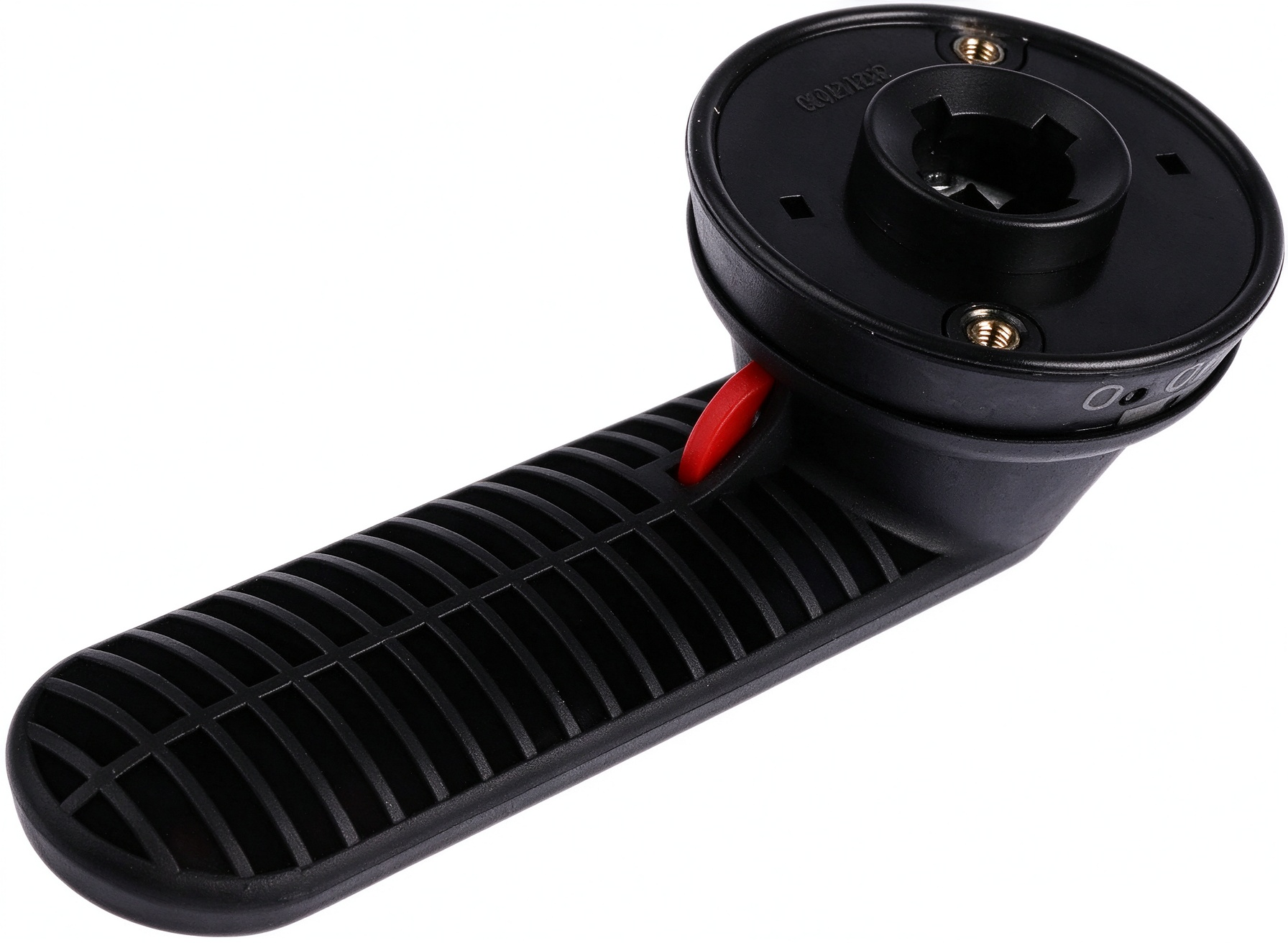

ABB 1SCA022381R1560 OHB125J12 Black Pistol Handle for Switch Disconnectors

The ABB 1SCA022381R1560 is an OHB125J12 pistol handle designed for compatible ABB switch disconnectors. This black rotary operating handle provides a manual interface for operating electrical switching equipment installed in industrial panels, distribution assemblies, and power control systems. Its 125 mm handle length, IP65 protection rating, and provision for padlocking in the OFF position make it suitable for applications requiring accessible switch operation and a clearly defined isolation control point.

Product Overview

The OHB125J12 belongs to ABB’s range of accessories for switch disconnectors. It is intended to work with compatible switch mechanisms, allowing an operator to change the switch position through a mechanical rotary movement. The handle transfers the operator’s movement to the associated switching mechanism through the specified mounting arrangement and operating shaft.

The ordering number 1SCA022381R1560 identifies this particular accessory, while OHB125J12 is its extended product designation. The handle is black and uses a pistol-style form that provides a practical grip for manual operation. It is intended for use with designated ABB switch disconnectors rather than as an independent electrical switching device.

Correct identification is important when selecting this accessory for an existing installation. Handles that appear similar may differ in length, shaft interface, mounting arrangement, operating indication, or compatibility with a particular switch family. Before ordering a replacement or planning a new panel, the complete product designation should be compared with the documentation for the associated switch disconnector.

Key Technical Specifications

• Manufacturer: ABB
• Product type: Pistol-type rotary operating handle
• Product designation: OHB125J12
• Order code: 1SCA022381R1560
• Handle colour: Black
• Handle length: 125 mm
• Degree of protection: IP65
• Operating function: Manual rotary operation
• Locking provision: Padlocking in the OFF position
• Application: Compatible ABB switch disconnectors
• Product category: Switch disconnector accessories

These characteristics describe the handle accessory, not the electrical ratings of the switch disconnector to which it is fitted. The handle does not independently establish the rated operational current, voltage, or short-circuit capability of the complete switching assembly. Those values depend on the associated switch model and its installation conditions.

Manual Rotary Operating Mechanism

The primary function of the OHB125J12 is to provide a convenient external operating point for a compatible switch disconnector. When correctly installed, the handle engages with the specified operating mechanism and allows the operator to move the switch between its designated positions. This arrangement is commonly used where the switching device is mounted inside an enclosure and the operator needs access to a manual control interface.

The pistol-style grip provides a defined surface for applying the movement required by the operating mechanism. The 125 mm handle length is an important selection characteristic because the handle must suit the switch arrangement, available operating space, and mechanical interface specified by ABB. An appropriate handle helps ensure that the switching mechanism can be operated according to its intended design.

The handle should not be treated as a universal replacement for every rotary switch accessory. The operating shaft, mounting dimensions, and mechanical coupling must correspond to the selected switch disconnector. Using an incompatible accessory can prevent proper engagement, interfere with the intended switching movement, or compromise the operation of the complete assembly.

IP65 Protection and Enclosure Integration

The OHB125J12 is specified with an IP65 degree of protection. Under the applicable IP classification, the first digit indicates protection against dust ingress, while the second digit indicates protection against water jets under defined test conditions. This rating is relevant when a handle is installed as part of an enclosure-mounted switching arrangement exposed to industrial environmental conditions.

IP65 should be understood as a protection classification for the specified product configuration, not as a guarantee that every completed electrical cabinet automatically achieves the same rating. The enclosure, mounting opening, gasket arrangement, operating shaft, and installation workmanship can all affect the protection of the assembled system. The manufacturer’s installation instructions should be followed to preserve the intended enclosure protection.

In industrial environments, enclosure protection can be important where electrical panels are exposed to dust, routine cleaning, or water jets. The actual suitability of the assembly depends on the environmental conditions, installation orientation, enclosure construction, and applicable site requirements. Where additional protection is necessary, the complete installation should be assessed rather than relying on the handle rating alone.

Padlocking and OFF-Position Control

The OHB125J12 provides a padlocking facility for the OFF position. This feature allows the handle to be secured in the designated OFF position using compatible padlocks, helping restrict unauthorized or unintended operation of the associated switch disconnector. The arrangement can support maintenance procedures in which control of the switching position is an important part of the site’s electrical safety process.

The padlocking function must be used according to the switch manufacturer’s instructions and the site’s established safety procedures. Before maintenance begins, personnel must identify all relevant energy sources, isolate the equipment as required, and verify the safe condition of the circuit. A locked handle alone does not prove that every conductor is de-energized or that all possible energy sources have been isolated.

The number and dimensions of compatible padlocks, the exact locking arrangement, and the mechanical interlocking behavior should be confirmed in the applicable product documentation. Correct use of the locking feature helps make the operating state more controlled, but it does not replace formal lockout procedures or other required protective measures.

Compatible Switch Disconnectors

The ABB 1SCA022381R1560 is an accessory for designated ABB switch disconnectors. ABB product information lists compatibility with several switch families and models, including selected OT and OTDC devices. Compatibility must be checked against the specific switch model because the correct operating handle depends on the required mechanical interface and intended installation.

When selecting the handle for an existing switch disconnector, verify the complete switch designation, operating shaft dimensions, mounting method, and enclosure arrangement. Particular attention should be given to applications involving large switch disconnectors, where the operating mechanism and mechanical requirements can differ from those of smaller devices.

Do not assume that a handle is compatible simply because it carries the ABB name or belongs to the OH accessory family. Related handles may have different lengths, colours, indication arrangements, or locking features. Checking the relevant ABB catalogue and installation instructions helps reduce compatibility errors and supports the correct operation of the completed assembly.

Industrial Applications

The OHB125J12 can be used in suitable industrial electrical panels, switchgear assemblies, distribution boards, and machine control enclosures. In these applications, a rotary handle provides an accessible means of operating a switch disconnector without requiring direct access to the internal switching mechanism.

Switch disconnectors are commonly incorporated into power distribution and machine isolation arrangements. A compatible external handle allows the operator to change the switch position according to the equipment’s operating procedure. The padlocking provision can also support maintenance coordination where the OFF position must be secured against unintended operation.

Typical application environments include manufacturing facilities, process equipment, electrical distribution systems, and industrial machinery. Final suitability depends on the associated switch disconnector, enclosure requirements, operating conditions, and relevant electrical safety standards. The handle must always be installed as part of a correctly specified switching assembly.

Installation and Selection Considerations

Before installation, verify the accessory code and the compatible switch model. Check the handle length, mounting interface, operating shaft arrangement, and required position indication. The handle should engage correctly with the operating mechanism and move through the intended range without obstruction.

Installation should follow ABB’s instructions for the selected handle and switch disconnector. The enclosure opening, mounting hardware, sealing components, and mechanical coupling must be assembled correctly. Incorrect mounting may affect the operating mechanism or reduce the protection provided by the enclosure. Any specified tightening requirements and alignment procedures should be observed.

After installation, qualified personnel should verify the mechanical operation of the complete assembly in accordance with the manufacturer’s procedures and the site’s safety requirements. Confirm that the indicated switch positions correspond to the intended mechanism positions and that the handle operates without abnormal interference. Electrical checks and commissioning activities must follow the requirements applicable to the complete switching equipment.

Maintenance and Inspection

Routine inspection should follow the maintenance schedule for the associated electrical equipment. Check the handle, mounting points, operating interface, enclosure seal, and locking provision for visible damage or deterioration. Accumulated contamination, mechanical wear, loose mounting hardware, or damaged sealing components may affect operation and environmental protection.

If the handle becomes difficult to operate, investigate the complete mechanical assembly rather than applying excessive force. Possible causes include incorrect installation, shaft misalignment, obstruction, or a problem with the associated switch mechanism. Maintenance should be performed by qualified personnel after the relevant equipment has been placed in a safe condition.

Replacement decisions should be based on the exact product code and verified compatibility. A handle with a similar appearance may not provide the same mechanical fit, enclosure protection, or locking function. Using the correct accessory helps preserve the intended operating characteristics of the switch disconnector.

Conclusion

The ABB 1SCA022381R1560 OHB125J12 is a black pistol-type rotary handle designed for compatible ABB switch disconnectors. Its 125 mm handle length, IP65 protection rating, and OFF-position padlocking provision make it suitable for specified industrial panel and switchgear applications. Correct selection requires verification of the switch model, operating shaft interface, enclosure arrangement, and installation requirements. By following the applicable ABB documentation, engineers and maintenance personnel can integrate the handle into a suitable manual switching and isolation arrangement.
