ABB 1SBL177201R1300 AF16-40-00-13 Four-Pole Contactor Technical Specifications and Applications

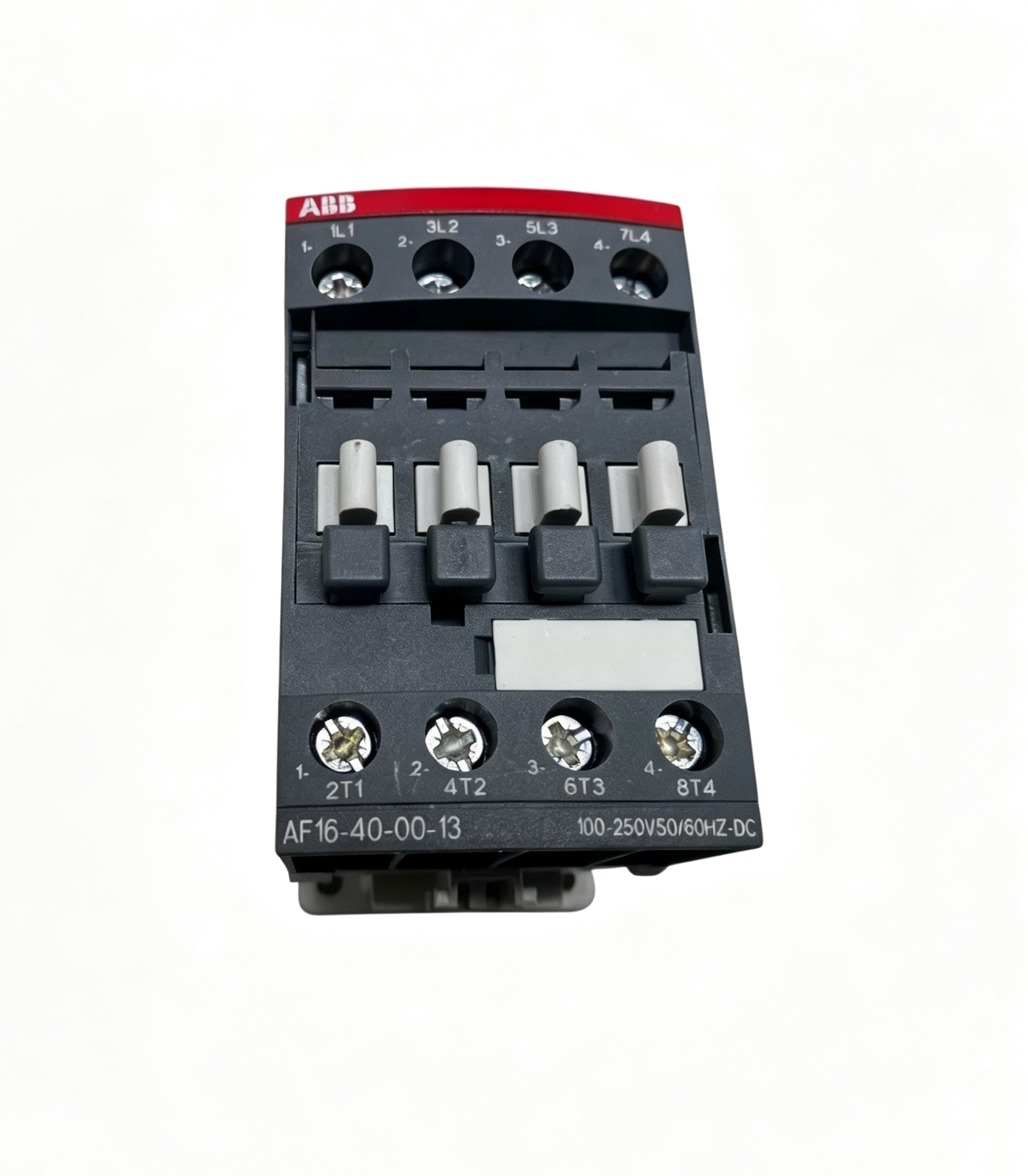

ABB 1SBL177201R1300 Product Overview

ABB 1SBL177201R1300 belongs to the ABB AF contactor family and is identified by
the type designation AF16-40-00-13. The four-pole configuration provides four
normally open main contacts and no normally closed main contacts in the standard
configuration. This arrangement allows the device to switch multiple conductors
within a power circuit using a single contactor.

The contactor has screw terminals for the main circuit and control circuit.
The main circuit is rated for operation up to 690 V AC under the applicable
IEC requirements. For AC-1 utilization, the rated operational current reaches
30 A at 690 V under the specified ambient conditions. For AC-3 applications,
the contactor provides an 18 A rating at 400 V and is associated with motor
applications up to 7.5 kW at 400 V AC.

A key characteristic of the AF16-40-00-13 is its wide control voltage range.
The coil interface accepts 100-250 V at both 50 Hz and 60 Hz AC, as well as
100-250 V DC. This broad operating range allows the same contactor configuration
to accommodate different control voltage conditions without requiring a separate
coil selection for each voltage within the specified range.

Electrical Characteristics

The ABB 1SBL177201R1300 is designed for applications where the electrical load
and utilization category must be considered carefully. Its rated operational
voltage for the main circuit is 690 V AC, while the rated insulation voltage is
690 V according to IEC requirements and 600 V according to UL/CSA specifications.
The device supports both 50 Hz and 60 Hz main circuit frequencies.

Under AC-1 utilization, the rated operational current is 30 A at 690 V with the
applicable ambient temperature conditions. Under AC-3 utilization, the rated
operational current is 18 A at 220-440 V and 15 A at 500 V. At 690 V, the
AC-3 rating is 10.5 A. These values provide important reference points when
selecting the contactor for resistive loads, motor circuits, and other electrical
loads.

The AF16-40-00-13 also provides short-time withstand capabilities specified for
different durations. At a 40 °C ambient temperature and in free air from a cold
state, the documented short-time current values include 300 A for one second,
150 A for ten seconds, 80 A for thirty seconds, and 60 A for one minute.
These values should be evaluated together with the complete protection and
coordination design of the electrical system.

Control Voltage and AF Technology

The control circuit is one of the defining features of ABB AF contactors.
ABB 1SBL177201R1300 uses an electronic coil interface capable of accepting
100-250 V AC or DC. This wide voltage tolerance is particularly useful in
industrial control systems where control voltage conditions can vary within
the specified operating range.

The AF design also incorporates built-in surge protection. This eliminates the
need for a separate external surge suppressor for the contactor coil in the
standard configuration. The electronic interface contributes to the contactor’s
ability to manage variations in control voltage while maintaining the intended
switching behavior.

The control circuit and main circuit use screw-terminal connections. The
specified wire stripping length is 10 mm for both the control and main circuits.
Correct conductor preparation and tightening torque are important when installing
the contactor in an industrial control cabinet.

Main Contact Configuration

The ABB 1SBL177201R1300 uses a four-pole block-type construction. Its standard
configuration contains four normally open main contacts and zero normally closed
main contacts. When the coil is energized, the main contacts change state to
establish the intended electrical connection. When the coil is de-energized,
the contacts return to their normal state.

The contactor can also be integrated with compatible auxiliary contact blocks
and other accessories from the ABB AF product family. This modular accessory
approach allows the basic contactor configuration to be adapted to control,
signaling, and interlocking requirements within a larger electrical system.
The selected accessories should always match the relevant contactor type and
application requirements.

Technical Specifications

Industrial Applications

ABB 1SBL177201R1300 can be applied in industrial electrical systems that require
four-pole switching and a broad control voltage range. Typical application areas
include control cabinets, power distribution assemblies, electrical machinery,
resistance heating circuits, and other systems in which non-inductive or slightly
inductive loads are switched through a contactor.

For motor-related applications, the AC-3 characteristics are especially important.
At 400 V AC, the AF16-40-00-13 is rated at 18 A and 7.5 kW. Selection should be
based on the actual motor rating, utilization category, operating conditions,
switching frequency, and applicable electrical protection requirements rather
than relying only on the nominal contactor designation.

The four-pole arrangement can also be useful in systems where several conductors
must be switched together. Its compact 45 mm width allows it to fit efficiently
into many conventional control cabinet layouts while maintaining access to the
main and control terminals.

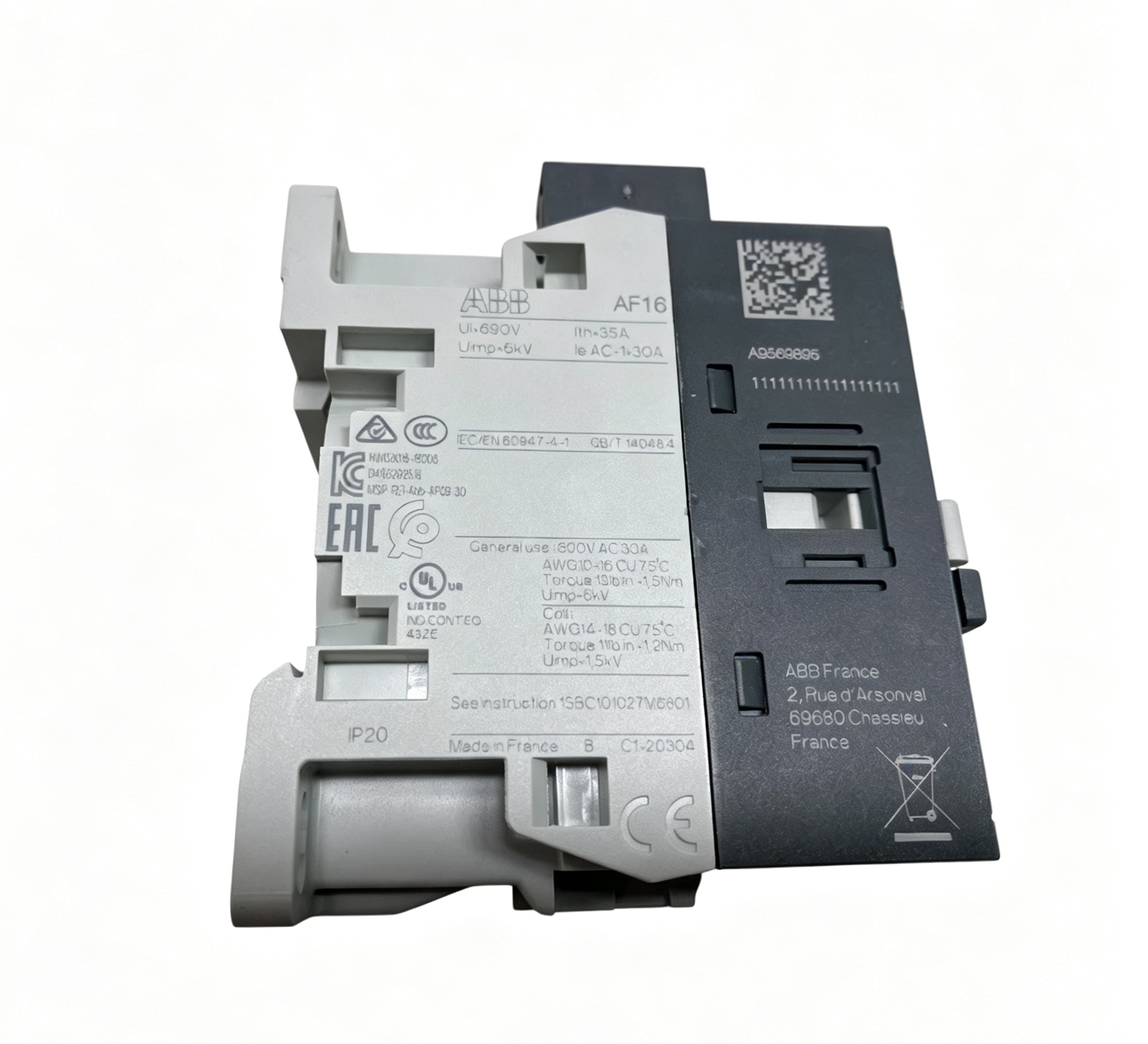

Mechanical Design and Installation Considerations

The contactor has a compact block construction measuring approximately 45 mm in
width, 86 mm in height, and 77 mm in depth, with a product net weight of 0.27 kg.
Its screw-terminal arrangement provides a conventional connection method for
industrial panel wiring.

The specified connection capacity for the main circuit supports rigid conductors
from 1 to 6 mm² and flexible conductors within the corresponding ranges specified
for ferrules. The control circuit accepts rigid conductors from 1 to 2.5 mm² and
flexible conductors within the documented ranges. Installation should follow the
applicable ABB documentation, conductor requirements, and electrical installation
standards.

Switching Performance and Standards

The ABB 1SBL177201R1300 is specified according to IEC 60947-1 and IEC 60947-4-1,
with EN 60947-1 and EN 60947-4-1 also identified in the product specifications.
UL 508 and CSA C22.2 No. 14 are also referenced for the applicable product
requirements.

The maximum mechanical switching frequency is specified at 3,600 cycles per hour,
while the maximum electrical switching frequency for AC-1 operation is 600 cycles
per hour. The documented impulse withstand voltage is 6 kV. These characteristics
provide useful reference information when assessing the contactor for industrial
switching duties and control panel design.

Why ABB 1SBL177201R1300 Is Used in Industrial Control Systems

The combination of four normally open main contacts, a 100-250 V AC/DC electronic
coil interface, 690 V main circuit capability, and a compact AF-series design
makes ABB 1SBL177201R1300 a versatile component for industrial power switching.
Its wide control voltage range reduces the need to match the contactor to a
single control voltage within the supported range, while the built-in surge
protection contributes to a simplified control circuit design.

When selecting this contactor for an installation, engineers should verify the
exact load category, operating voltage, current, motor power where applicable,
switching frequency, ambient conditions, conductor size, and required auxiliary
functions. The complete electrical system must also incorporate appropriate
protection and coordination components.

Product Identification

For purchasing, engineering documentation, maintenance records, and component
identification, the complete catalog number is 1SBL177201R1300.
The corresponding type designation is AF16-40-00-13. Keeping
both identifiers together helps distinguish this four-pole contactor from other
AF series configurations that may have different contact arrangements, control
voltage ranges, or electrical ratings.

ABB 1SBL177201R1300 is therefore best identified as an ABB AF16-40-00-13 four-pole
contactor with four normally open main contacts and a 100-250 V AC/DC control
voltage range. Its electrical and mechanical characteristics make it a practical
component for industrial contactor panels, power switching circuits, and
applicable motor control systems where the specified ratings meet the application
requirements.
