ABB 1SBL177201R1300 AF16-40-00-13 Four-Pole Contactor 100-250V AC/DC Technical Overview

ABB 1SBL177201R1300 Product Overview

The AF16-40-00-13 combines a compact block contactor construction
with ABB AF electronic coil technology. Its control circuit accepts
100-250 V AC at 50 Hz or 60 Hz and 100-250 V DC. This broad control
range allows the same contactor configuration to be integrated into
control panels using different control voltage conditions without
changing the coil for each individual voltage.

The main switching section contains four normally open contacts and
no integrated normally closed main contacts. The four-pole
configuration makes the device suitable for applications in which
several power conductors must be switched together. Screw terminals
are provided for electrical connections, while add-on auxiliary
contact blocks and other accessories can be used when the control
architecture requires additional contact functions.

According to the ABB product specification, the contactor has a
rated operational voltage of up to 690 V in the main circuit under
IEC requirements. Its general-purpose switching capability is
specified at 30 A AC-1, while the AC-3 operational current is
18 A at 220/230/240 V, 380/400 V, 415 V and 440 V at the specified
operating conditions. At 400 V AC-3, the corresponding operational
motor power is 7.5 kW.

AF16-40-00-13 Control Voltage Technology

One of the defining characteristics of the ABB AF contactor family
is its electronic coil interface. For the 1SBL177201R1300, the
specified control voltage range is 100-250 V for 50 Hz, 60 Hz and
DC operation. This design allows the contactor to accommodate
relatively wide variations in the available control voltage.

The electronic coil interface also contributes to the overall
control concept of the AF series. Instead of relying on a narrow
conventional coil voltage specification, the AF technology allows
a wider voltage window to be handled by one contactor configuration.
This can simplify component selection in control panels and
electrical systems where control voltages may vary between
installations.

Surge protection is integrated into the AF contactor design. The
integrated arrangement reduces the need to provide a separate
external surge suppression component specifically for the
contactor coil. This is particularly relevant when the contactor
is installed as part of a compact control cabinet or motor control
assembly.

Electrical Ratings

Four-Pole Main Contact Configuration

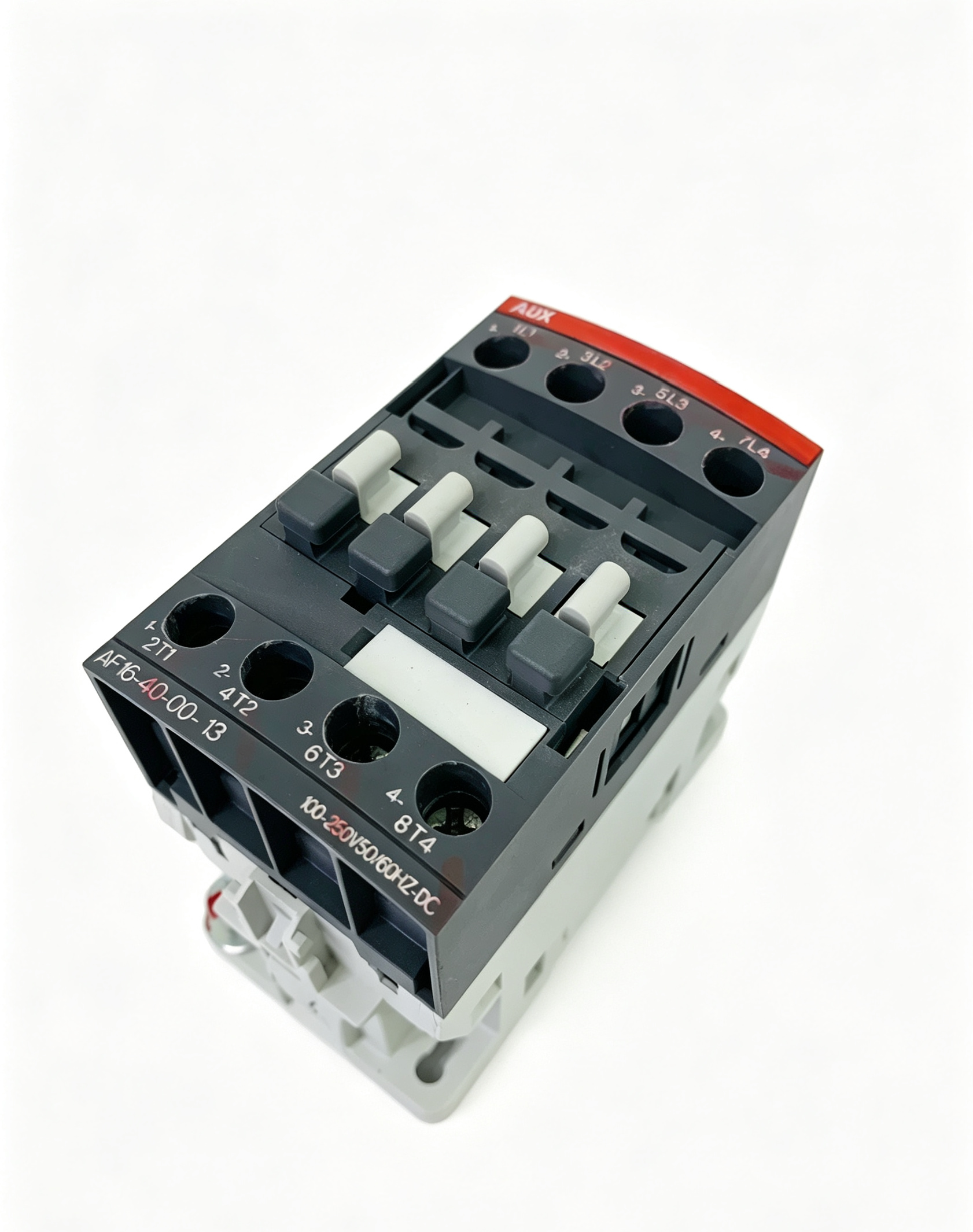

The four-pole architecture is an important feature of the
1SBL177201R1300. All four main poles are normally open contacts,
allowing the contactor to connect or disconnect four circuits
through a common contactor operating mechanism. This arrangement
is different from three-pole contactors commonly used for
conventional three-phase motor switching and can be useful when
the application requires an additional switched conductor.

The AF16-40-00-13 uses a block-type construction. Auxiliary
contact functions are not integrated into the basic device, with
the specification indicating zero built-in auxiliary normally open
and normally closed contacts. Additional auxiliary contact blocks
can be mounted separately according to the requirements of the
control system.

The mechanically linked auxiliary contact concept used with the
AF contactor family supports applications requiring defined
feedback and contact monitoring arrangements. When selecting
accessories, the electrical configuration and the requirements of
the complete control circuit should be considered together with
the contactor’s main contact arrangement.

Application Characteristics

ABB 1SBL177201R1300 is intended for power switching applications
involving non-inductive or slightly inductive loads and can also
be used for motor control within its specified AC-3 ratings.
Typical system-level applications can include electrical control
panels, industrial machinery, power distribution assemblies,
resistance heating circuits and motor-related control equipment.

For motor applications, the applicable AC-3 rating depends on the
operating voltage. The specified AC-3 current is 18 A at 400 V,
corresponding to a rated motor power of 7.5 kW at that voltage.
At higher voltage levels, the permitted AC-3 current changes, so
the contactor should always be selected according to the actual
load category, voltage, current and operating conditions.

For AC-1 applications, the contactor provides a rated operational
current of 30 A under the specified 40°C and 60°C conditions,
decreasing to 26 A at 70°C. These ratings make the device suitable
for switching appropriate resistive or lightly inductive loads
when the application remains within the applicable electrical
limits.

Mechanical and Installation Characteristics

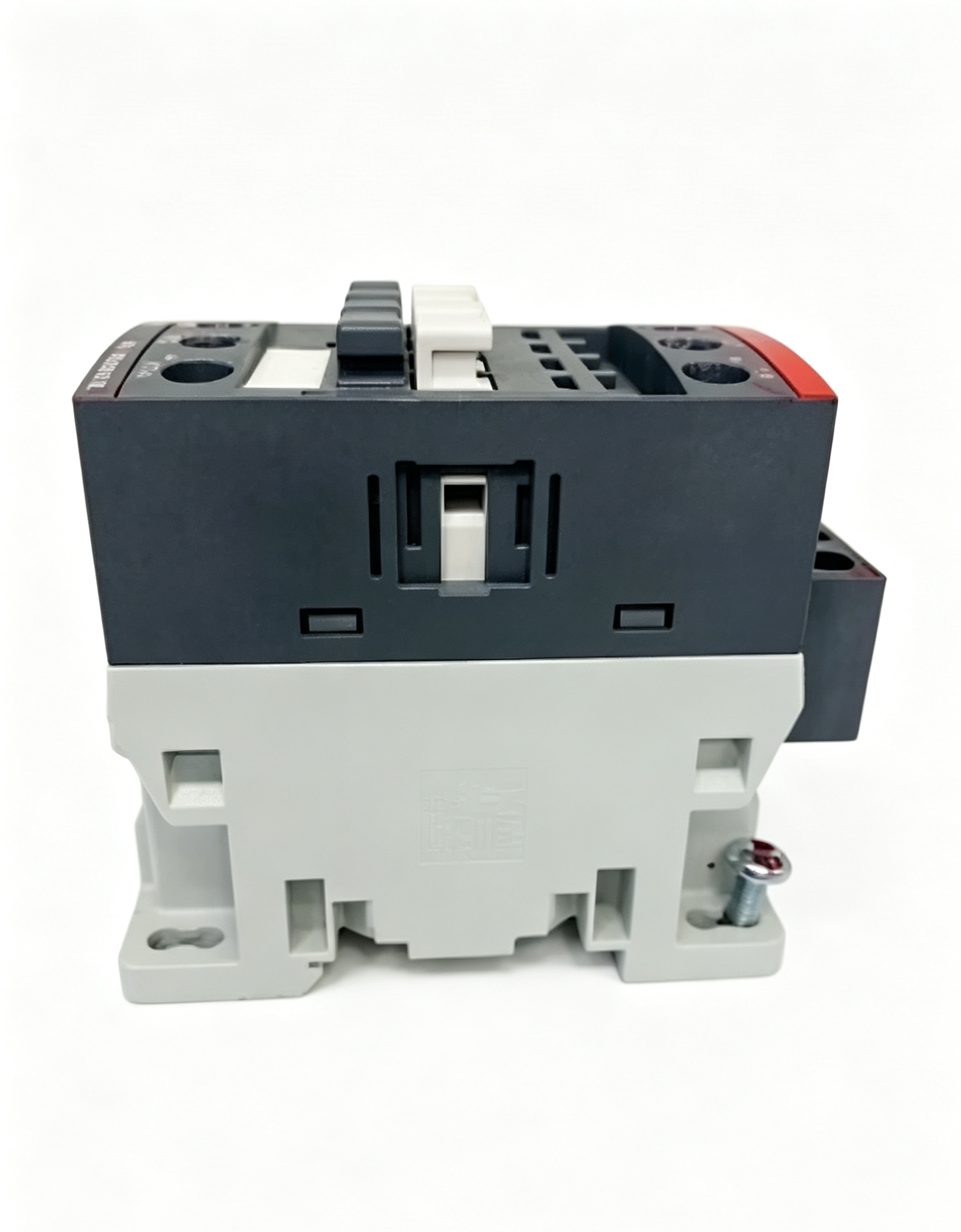

The compact dimensions of the ABB AF16-40-00-13 are approximately
45 mm wide, 77 mm deep and 86 mm high, with a product net weight
of approximately 0.27 kg. Its relatively compact footprint is
suited to electrical panels where component density and available
mounting space are important design considerations.

The main and control terminals use screw connections. The specified
terminal arrangement supports practical panel wiring while
maintaining separation between the main power circuit and control
circuit. The terminal protection degree is specified as IP20,
therefore the contactor should be installed inside an appropriate
enclosure or electrical assembly suitable for the surrounding
environment.

The operating ambient air temperature specification extends from
-40°C to +70°C when the contactor operates in free air. The
corresponding storage temperature range is -60°C to +80°C.
Installation conditions, enclosure temperature, ventilation and
load characteristics should be considered when applying these
ratings to a complete electrical system.

Standards and System Integration

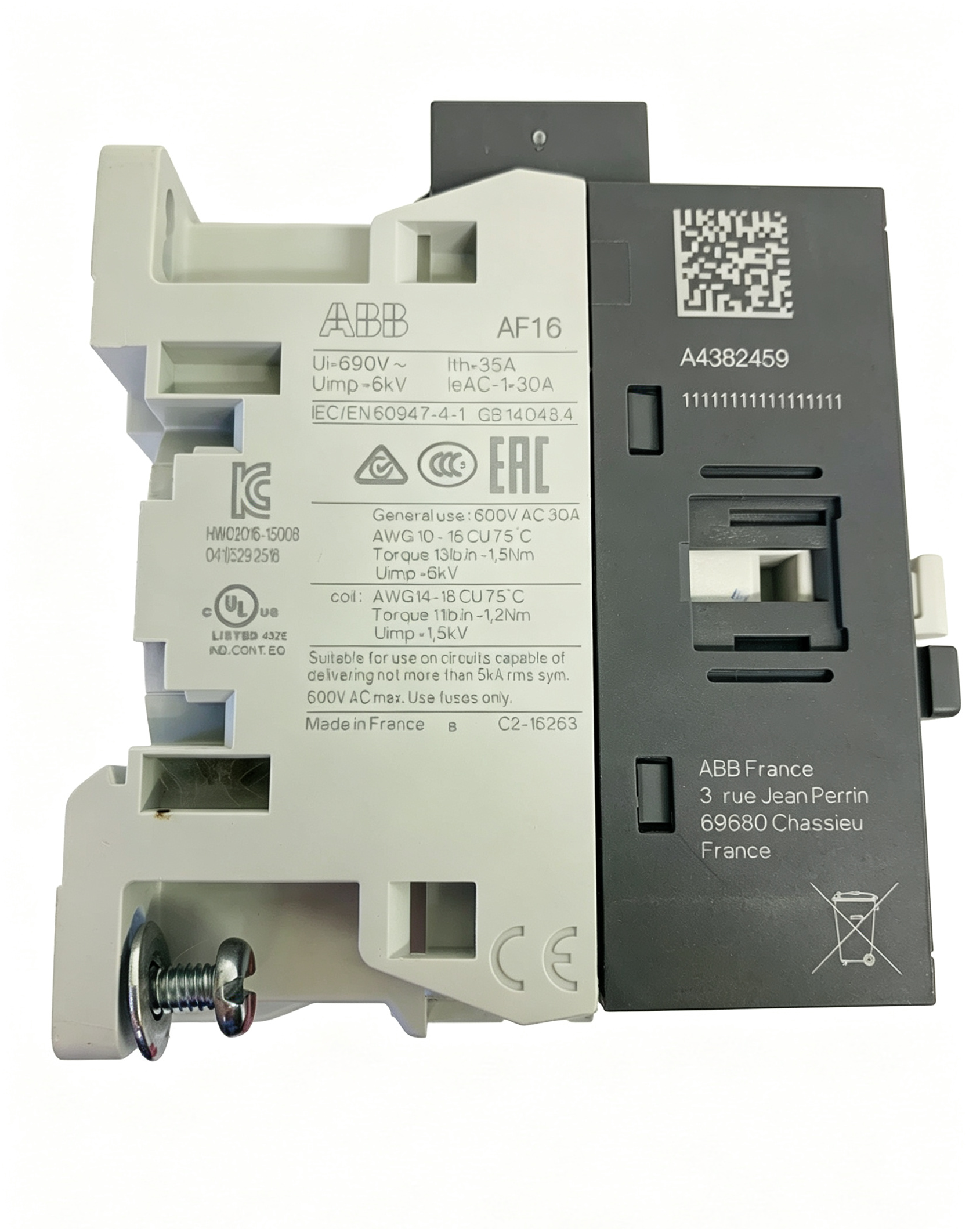

The ABB 1SBL177201R1300 is specified according to IEC 60947-1 and
IEC 60947-4-1, with corresponding EN requirements. The product
specifications also reference UL 508 and CSA C22.2 No. 14.
These standards provide the technical framework for evaluating
low-voltage switching equipment and its application in electrical
control systems.

The device has a rated insulation voltage of 690 V according to
IEC requirements and 600 V according to UL/CSA specifications.
Its secondary rated impulse withstand voltage is 6 kV. These
characteristics are relevant when evaluating insulation
coordination and the electrical environment of the complete
installation.

Selection Considerations for ABB 1SBL177201R1300

When specifying the 1SBL177201R1300, the first consideration is
whether the four-pole AF16 configuration matches the required
switching arrangement. The control circuit must also provide a
voltage within the 100-250 V AC/DC range. For power applications,
the load category should be identified before using the AC-1 or
AC-3 rating as the selection reference.

Motor loads require particular attention to operating voltage,
motor power and AC-3 current. At 400 V, the contactor is specified
for motor control up to 7.5 kW under AC-3 conditions. For other
voltage levels, the corresponding current and power ratings should
be checked rather than assuming that the 400 V rating applies
universally.

The availability of add-on auxiliary contacts and other AF series
accessories also allows the basic contactor to be adapted to
different control and monitoring requirements. The accessory
configuration should be selected according to the intended
electrical schematic and installation arrangement.

ABB 1SBL177201R1300 Technical Summary

ABB 1SBL177201R1300, designated AF16-40-00-13, is a four-pole AF
series contactor with four normally open main contacts and a
100-250 V AC/DC electronic coil interface. It supports main
circuit operation up to 690 V under IEC specifications and provides
30 A AC-1 switching capability. For AC-3 motor applications, the
specified rating reaches 18 A at 400 V, corresponding to 7.5 kW.

Its combination of wide-range control voltage, integrated surge
protection, screw terminals, compact block construction and
expandable accessory arrangement makes the 1SBL177201R1300 a
practical component for industrial electrical control systems.
Correct selection should always be based on the complete load
characteristics, control voltage, switching category, ambient
conditions and applicable installation standards.
