ABB 1SBL141001R8010 A9-30-10 Contactor

The ABB 1SBL141001R8010 is an A9-30-10 three-pole contactor designed for industrial motor control and electrical switching applications. As part of ABB’s A series contactor product range, this device provides reliable switching capability for three-phase motors, power circuits and industrial automation equipment.

Contactors are essential components in industrial electrical systems because they provide a controlled method of connecting and disconnecting power circuits. They allow low-power control signals to operate higher-power electrical loads such as motors, pumps, fans and industrial machinery. The ABB 1SBL141001R8010 is designed to provide stable operation, efficient switching and dependable performance in professional electrical installations.

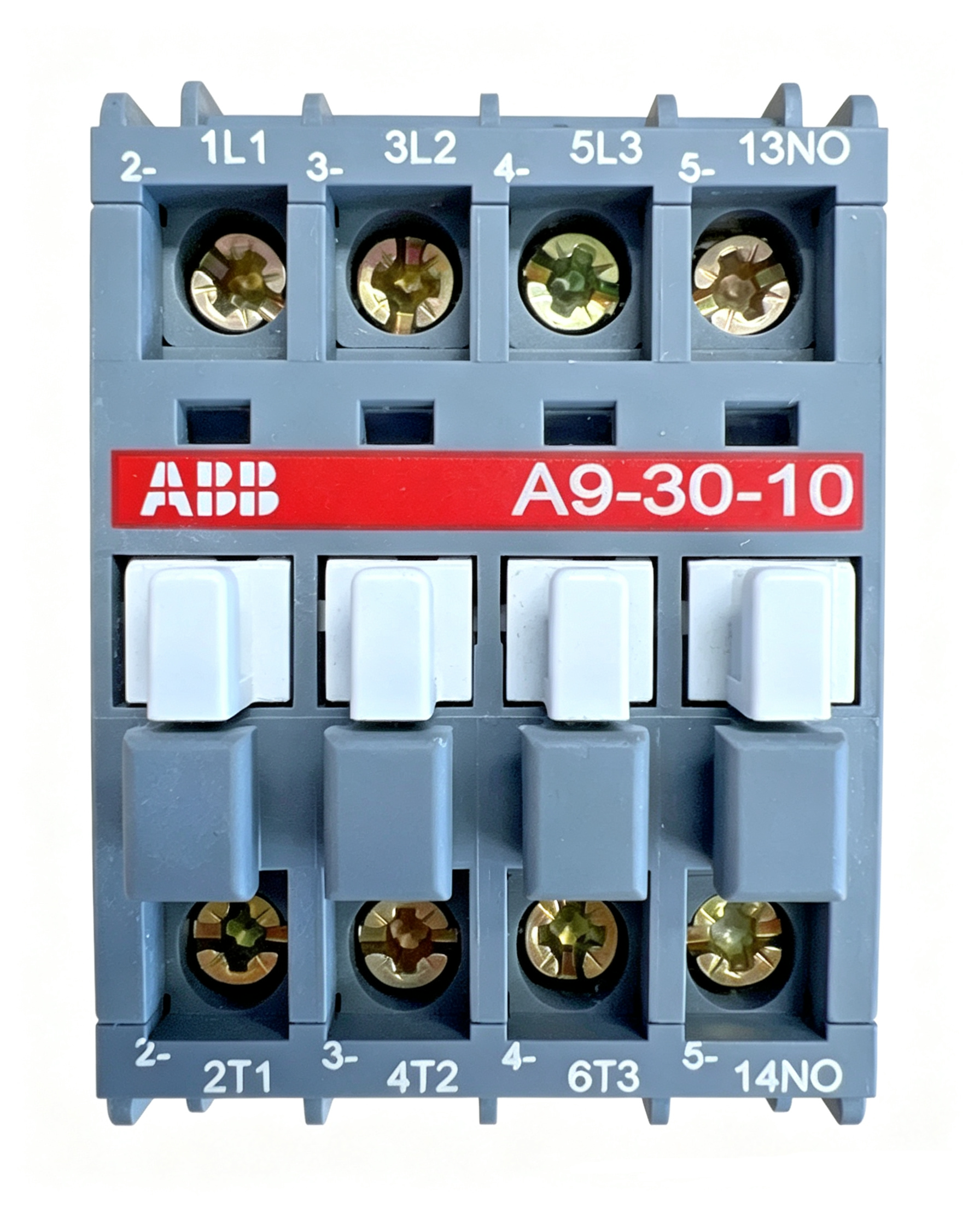

The A9-30-10 contactor combines a compact block design with ABB’s proven contactor technology. It includes three main power poles and one integrated auxiliary normally open contact, allowing it to perform both power switching and basic status feedback functions. The product is widely used in motor starters, control cabinets and industrial automation systems. :contentReference[oaicite:2]{index=2}

Product Overview

ABB 1SBL141001R8010 belongs to ABB’s A contactor family and is identified as model A9-30-10. The contactor is designed for controlling three-phase motors and general power circuits where reliable switching performance is required.

The device features three main normally open contacts for power switching and one built-in auxiliary normally open contact for control signal applications. The auxiliary contact allows connection to external control circuits for functions such as operation indication, interlocking and system feedback.

The ABB A9-30-10 is suitable for electrical applications with operational voltages up to 690 V AC. Its design follows industrial standards for low voltage switching equipment and provides a practical solution for motor control applications in factories, production systems and electrical distribution installations. :contentReference[oaicite:3]{index=3}

The control coil voltage of ABB 1SBL141001R8010 is 220–230 V AC at 50 Hz and 230–240 V AC at 60 Hz, allowing integration into common industrial control circuits. :contentReference[oaicite:4]{index=4}

Main Features and Functions

The primary function of the ABB 1SBL141001R8010 is to control the power supply of electrical loads through electromagnetic switching. When the coil receives a control voltage, the contactor activates and closes the main contacts, allowing current to flow to the connected equipment.

When the control signal is removed, the contactor returns to its original position and disconnects the power circuit. This simple but reliable switching principle makes contactors widely used in industrial automation and motor control applications.

One important feature of the ABB A9-30-10 is its three-pole configuration. This makes it suitable for controlling three-phase motors commonly used in industrial environments. Three-phase motor applications require synchronized switching of all phases, and a dedicated motor contactor provides reliable electrical control.

The integrated auxiliary contact improves system flexibility by providing an additional signal path. This allows control systems to monitor contactor operation and create more advanced electrical logic functions.

Technical Characteristics

The ABB 1SBL141001R8010 is designed for industrial switching applications with high reliability requirements. The contactor supports power circuit operation up to 690 V AC and is suitable for various motor and electrical load control applications.

According to ABB specifications, the A9-30-10 provides a rated operational current of up to 9 A under AC-3 utilization category depending on operating voltage conditions. It can be used for motor applications such as three-phase motors requiring dependable starting and stopping control. :contentReference[oaicite:5]{index=5}

The contactor uses a block-type construction with main poles and auxiliary contact options. ABB’s A series contactors are designed with modular accessories, allowing additional auxiliary contact blocks and related accessories to be added according to application requirements. :contentReference[oaicite:6]{index=6}

The compact structure allows efficient installation inside electrical cabinets where space optimization is important. This makes the ABB 1SBL141001R8010 suitable for machine control panels, motor control centers and industrial automation systems.

Industrial Applications

ABB 1SBL141001R8010 is widely used in industrial electrical systems where reliable motor switching is required. Typical applications include conveyor systems, pumps, ventilation equipment, compressors and industrial machinery.

In manufacturing facilities, motors are often required to start and stop frequently according to production requirements. Contactors provide the electrical interface between automation controllers and motors, allowing PLC systems and control devices to manage machine operation efficiently.

For pump and fan applications, contactors provide reliable switching control while helping protect electrical equipment from unnecessary operation. In automated production lines, they support coordinated operation between multiple electrical devices.

The ABB A9-30-10 can also be applied in general power switching situations, including lighting control, isolation functions and other industrial electrical applications where electromagnetic switching is required. :contentReference[oaicite:7]{index=7}

Advantages of ABB 1SBL141001R8010

One major advantage of the ABB 1SBL141001R8010 is its reliable switching performance. Industrial equipment often operates continuously, requiring components that can withstand repeated electrical operations while maintaining stable performance.

Another advantage is ABB’s extensive experience in low voltage control technology. ABB contactors are developed for professional industrial applications where reliability, compatibility and efficient operation are important factors.

The compact design of the A9-30-10 helps reduce panel space requirements while maintaining necessary electrical functionality. This makes it easier for engineers to design efficient control cabinets.

The integrated auxiliary contact also improves system monitoring capability. By providing additional feedback signals, the contactor can support more intelligent control strategies and improve equipment management.

Role in Industrial Automation Systems

Industrial automation systems rely on accurate control of electrical equipment. Contactors serve as important switching elements between control systems and power devices, allowing automation controllers to manage high-power loads safely.

The ABB 1SBL141001R8010 contributes to automation reliability by providing stable switching operation and compatibility with industrial control architectures. Its auxiliary contact function also allows better communication between electrical devices and monitoring systems.

In modern industrial environments, reliable switching components are essential for maintaining production efficiency. A properly selected contactor helps reduce operational interruptions and supports long-term equipment performance.

Design Reliability

ABB designs electrical control products according to international industrial requirements, focusing on safety, durability and operational stability. The A9-30-10 contactor reflects ABB’s approach to providing dependable solutions for motor control and electrical switching.

Its mechanical structure, electrical performance and accessory compatibility make it suitable for a wide range of industrial applications. The product design supports efficient installation, maintenance and integration into existing electrical systems.

Conclusion

The ABB 1SBL141001R8010 A9-30-10 Contactor is a reliable industrial switching component designed for motor control and electrical power applications. With three main contacts, one auxiliary contact and a 220–230 V AC control coil, it provides an effective solution for industrial automation and electrical control systems.

For applications requiring stable motor switching, compact installation and dependable industrial performance, the ABB 1SBL141001R8010 offers a practical contactor solution suitable for modern electrical systems.
