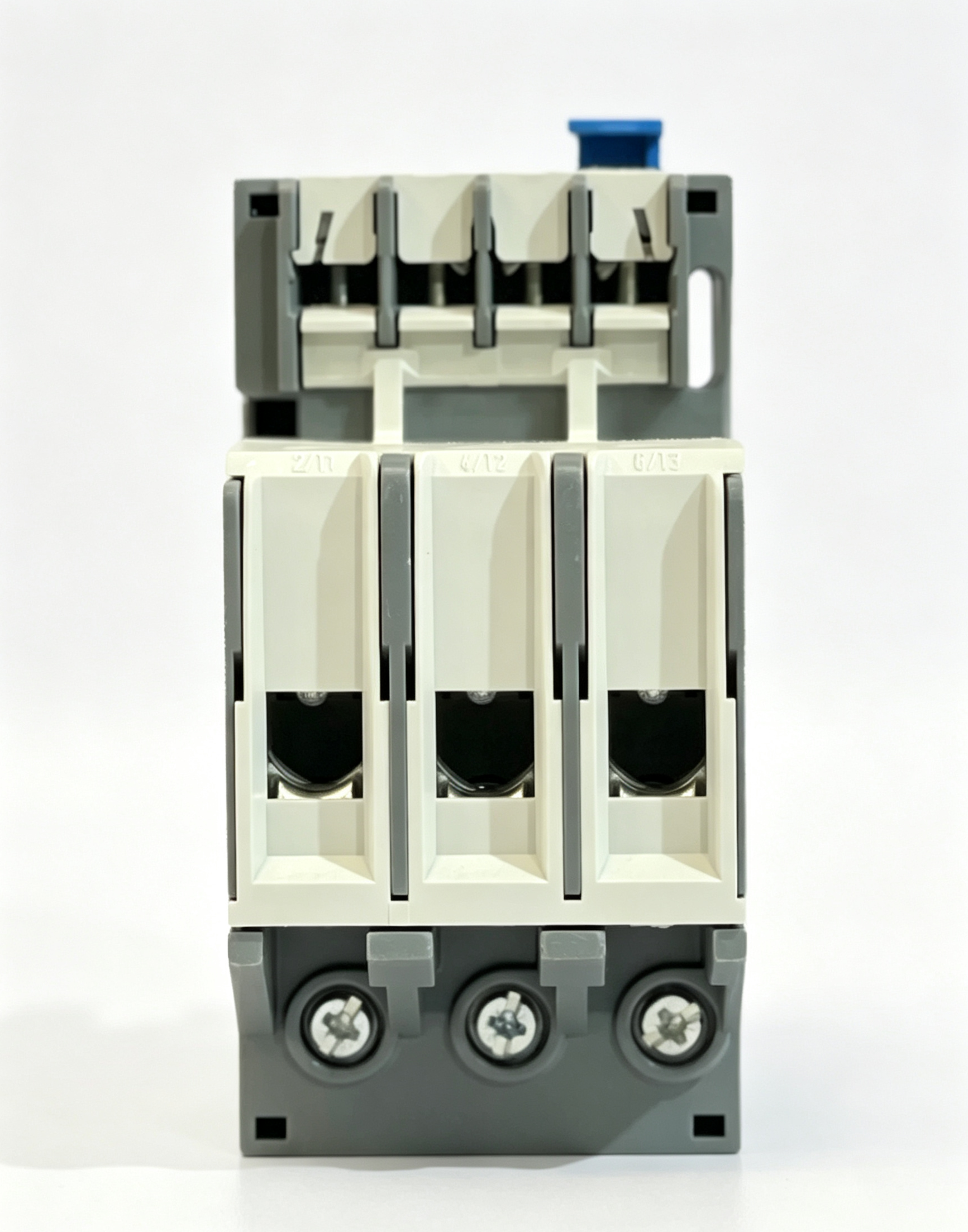

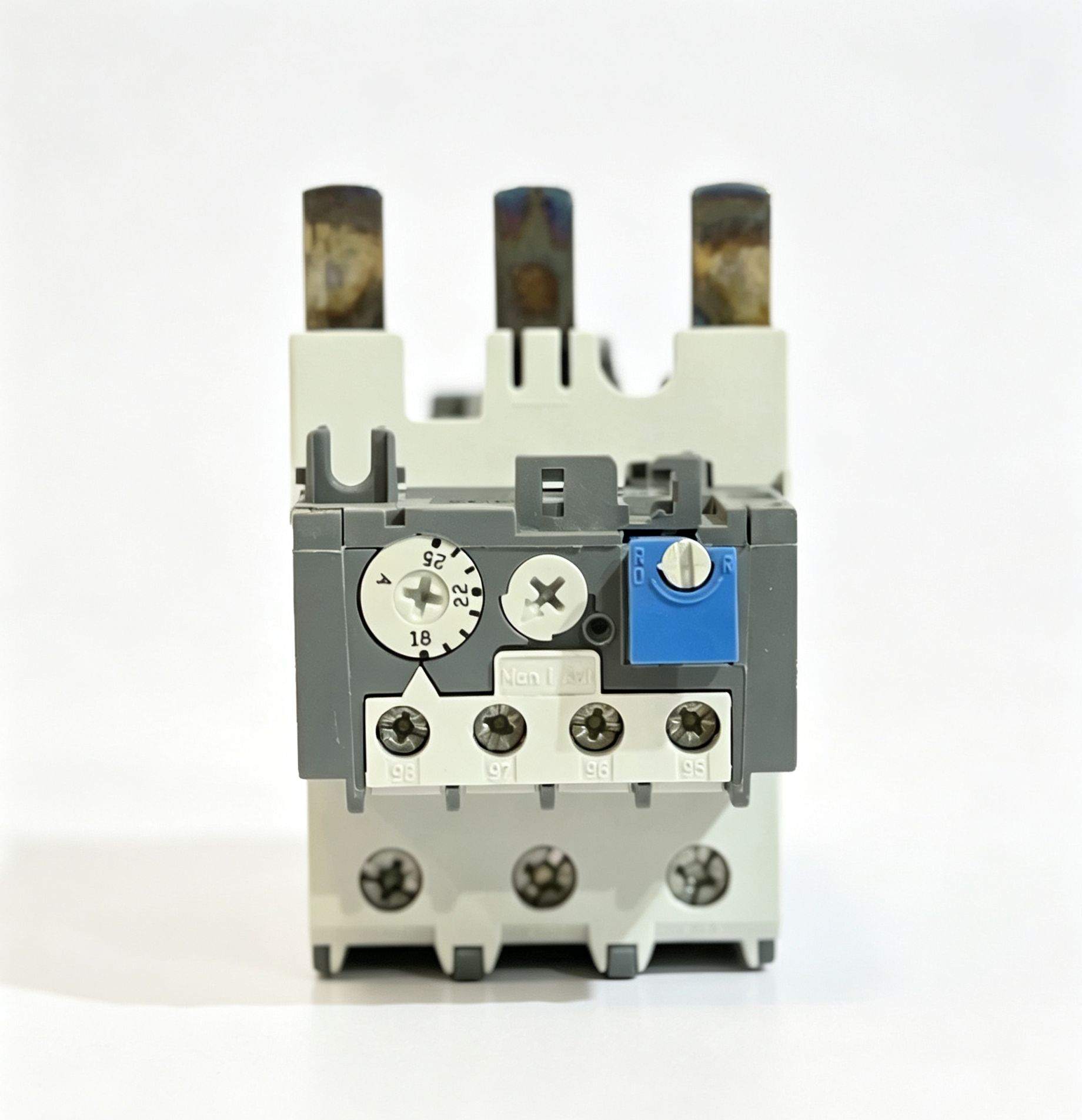

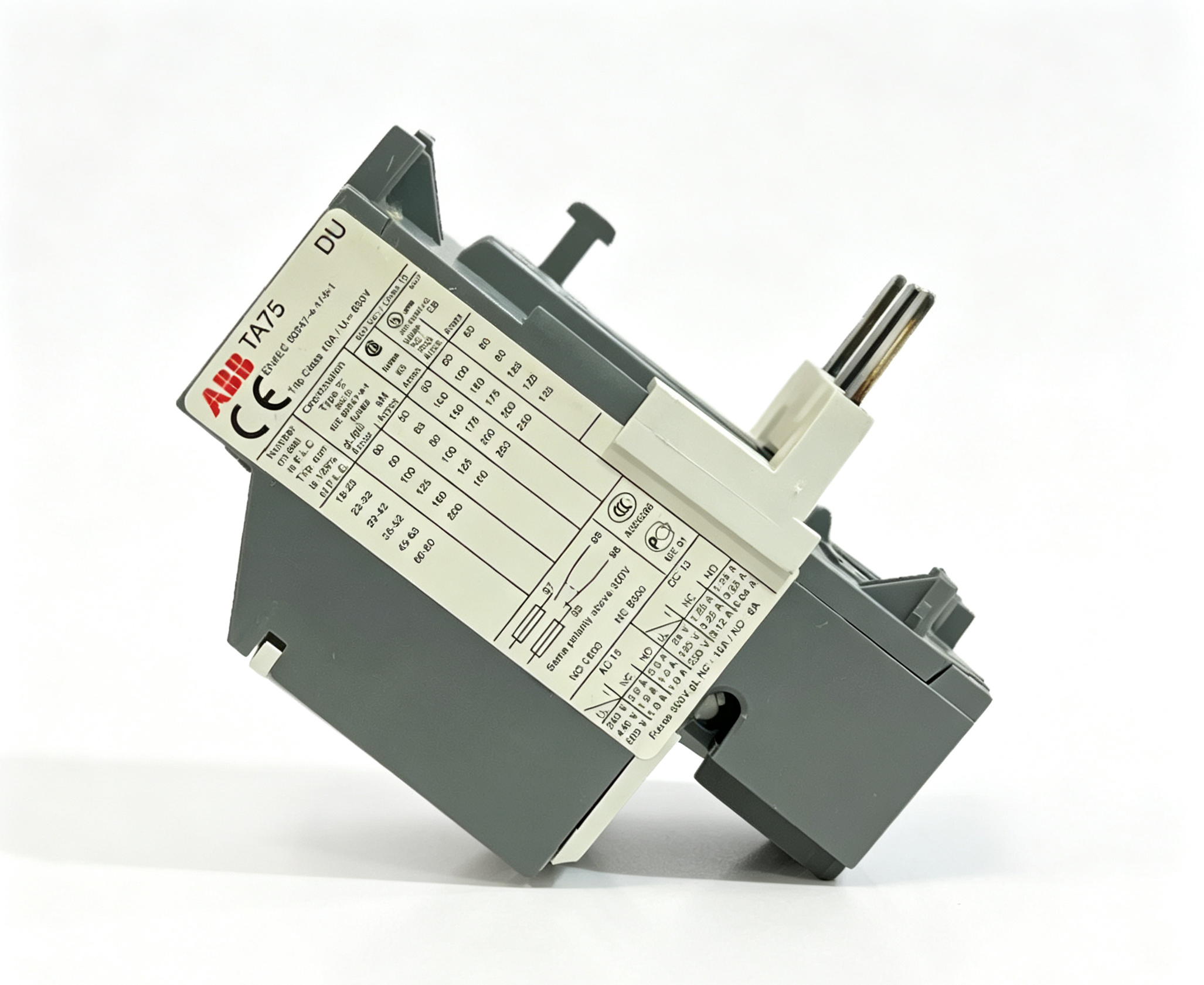

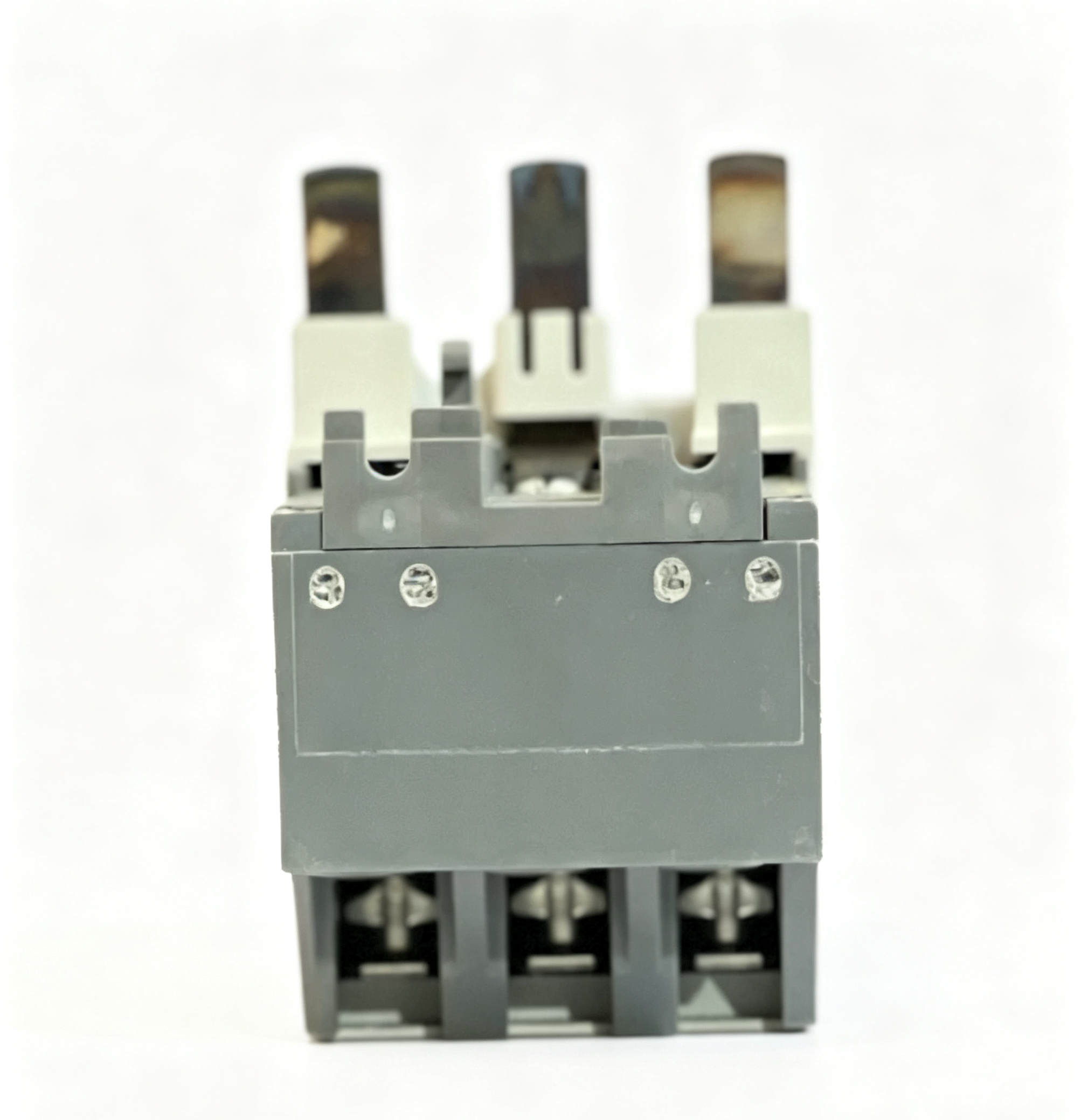

ABB 1SAZ321201R1001 TA75DU-25 Thermal Overload Relay

ABB 1SAZ321201R1001 is a TA75DU-25 thermal overload relay designed for industrial motor protection and low voltage control applications. It is part of ABB’s range of motor protection components, providing dependable protection against overload conditions and phase failure events in electrical motor circuits.

The ABB TA75DU-25 overload relay is designed for integration with ABB contactor systems and industrial motor starters. With an adjustable current setting range of 18 to 25 A and trip class 10A characteristics, it provides accurate thermal protection while supporting stable operation of motor-driven equipment. :contentReference[oaicite:1]{index=1}

Motor protection is a critical requirement in industrial automation systems. Motors used in manufacturing equipment, pumps, fans, compressors, and mechanical drive systems must be protected against excessive current conditions that may result from overload, mechanical blockage, or phase loss. ABB 1SAZ321201R1001 provides a practical protection solution for these applications.

Product Overview

ABB 1SAZ321201R1001, also known as TA75DU-25, is an electromechanical thermal overload relay developed for protecting motors in industrial electrical systems. The device monitors motor current and reacts when abnormal operating conditions exceed the preset thermal limits.

The relay works together with compatible ABB contactors to create a complete motor starter solution. This combination allows industrial users to achieve reliable motor switching and protection within a compact control system design.

The TA75DU series is designed according to ABB’s industrial control product standards, focusing on reliability, easy installation, and efficient motor protection. ABB 1SAZ321201R1001 is suitable for applications requiring stable protection performance and simple maintenance procedures.

Technical Specifications

• Manufacturer: ABB
• Product ID: 1SAZ321201R1001
• Product Type: TA75DU-25 Thermal Overload Relay
• Current Adjustment Range: 18 … 25 A
• Trip Class: 10A
• Protection Function: Motor overload and phase failure protection
• Technology: Electromechanical thermal protection
• Application: Industrial motor control systems

The adjustable current range allows the relay to be configured according to the rated operating current of the connected motor. This flexibility makes ABB 1SAZ321201R1001 suitable for different motor applications requiring accurate protection settings. :contentReference[oaicite:2]{index=2}

Protection Features

ABB 1SAZ321201R1001 provides reliable protection functions for industrial motors. The main purpose of a thermal overload relay is to prevent motor damage caused by excessive current over extended operating periods.

When a motor operates under overload conditions, the increased current causes thermal stress in the motor windings. The overload relay detects this condition and activates the protection mechanism to disconnect the motor circuit through the associated contactor.

The TA75DU-25 model includes temperature compensation, trip indication, selectable automatic or manual reset functions, and test features. These functions help improve operational reliability and simplify system troubleshooting. :contentReference[oaicite:3]{index=3}

Industrial Applications

ABB 1SAZ321201R1001 is widely used in industrial motor control applications where dependable overload protection is required. It can be applied in various industries including manufacturing, process automation, building systems, and mechanical equipment control.

Typical applications include conveyor systems, pumps, ventilation equipment, compressors, production machinery, and other motor-driven installations. In these systems, preventing motor overload is essential for maintaining production efficiency and reducing unexpected downtime.

The relay can be integrated into motor starter assemblies together with ABB contactors and control components, providing a complete electrical protection solution for industrial equipment.

Integration with ABB Motor Control Systems

ABB develops motor control solutions using coordinated components that work together to provide safe and efficient operation. Thermal overload relays play an important role by protecting motors while allowing contactors to handle switching operations.

ABB 1SAZ321201R1001 is designed for direct integration with ABB contactor systems. This design approach simplifies installation and provides engineers with a standardized method for creating motor control panels.

The compact structure of the TA75DU series helps save space inside electrical cabinets while maintaining reliable protection functionality. This is especially important for industrial applications where control cabinet space and system organization are important considerations.

Advantages of ABB 1SAZ321201R1001

ABB 1SAZ321201R1001 provides several advantages for industrial automation and electrical control systems. Its reliable thermal protection mechanism helps extend motor service life by reducing damage caused by abnormal operating conditions.

• Reliable motor overload protection
• Protection against phase failure conditions
• Adjustable current settings for different motor ratings
• Compatible with ABB contactor-based motor starters
• Compact design for industrial control panels
• Easy operation with reset and test functions

These characteristics make the ABB TA75DU-25 a suitable choice for applications requiring dependable motor protection and efficient electrical system management.

Maintenance and Operation

Proper installation and configuration are important for achieving the best performance from ABB 1SAZ321201R1001. The current setting should match the rated motor current to ensure effective protection without unnecessary interruptions.

Regular inspection of electrical connections and operating conditions helps maintain reliable system performance. The integrated test and indication functions assist maintenance personnel in checking relay status and identifying protection events.

ABB protection components are designed to support long-term industrial operation through robust construction and standardized system integration.

Conclusion

ABB 1SAZ321201R1001 TA75DU-25 Thermal Overload Relay is an important motor protection component designed for industrial electrical control applications. With adjustable current settings, trip class 10A protection, and compatibility with ABB motor starter systems, it provides reliable protection for a wide range of motor-driven equipment.

By combining dependable overload protection with flexible integration options, ABB 1SAZ321201R1001 supports efficient motor control solutions and helps improve the reliability of industrial automation systems.
