ABB 1SAP240500R1001 DC523 S500 Digital Configurable I/O Module 24DI/DO 24VDC

ABB 1SAP240500R1001 Product Overview

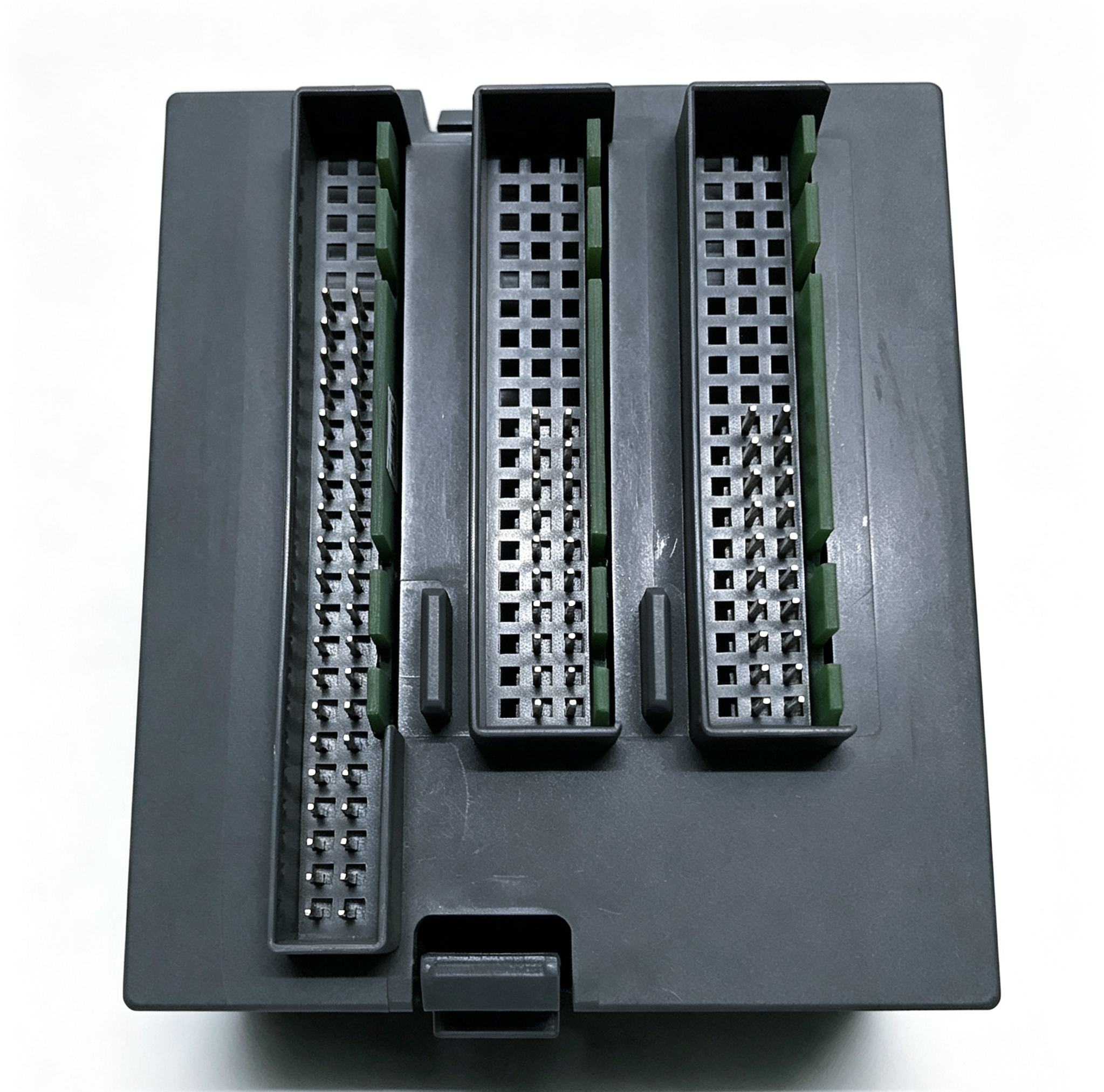

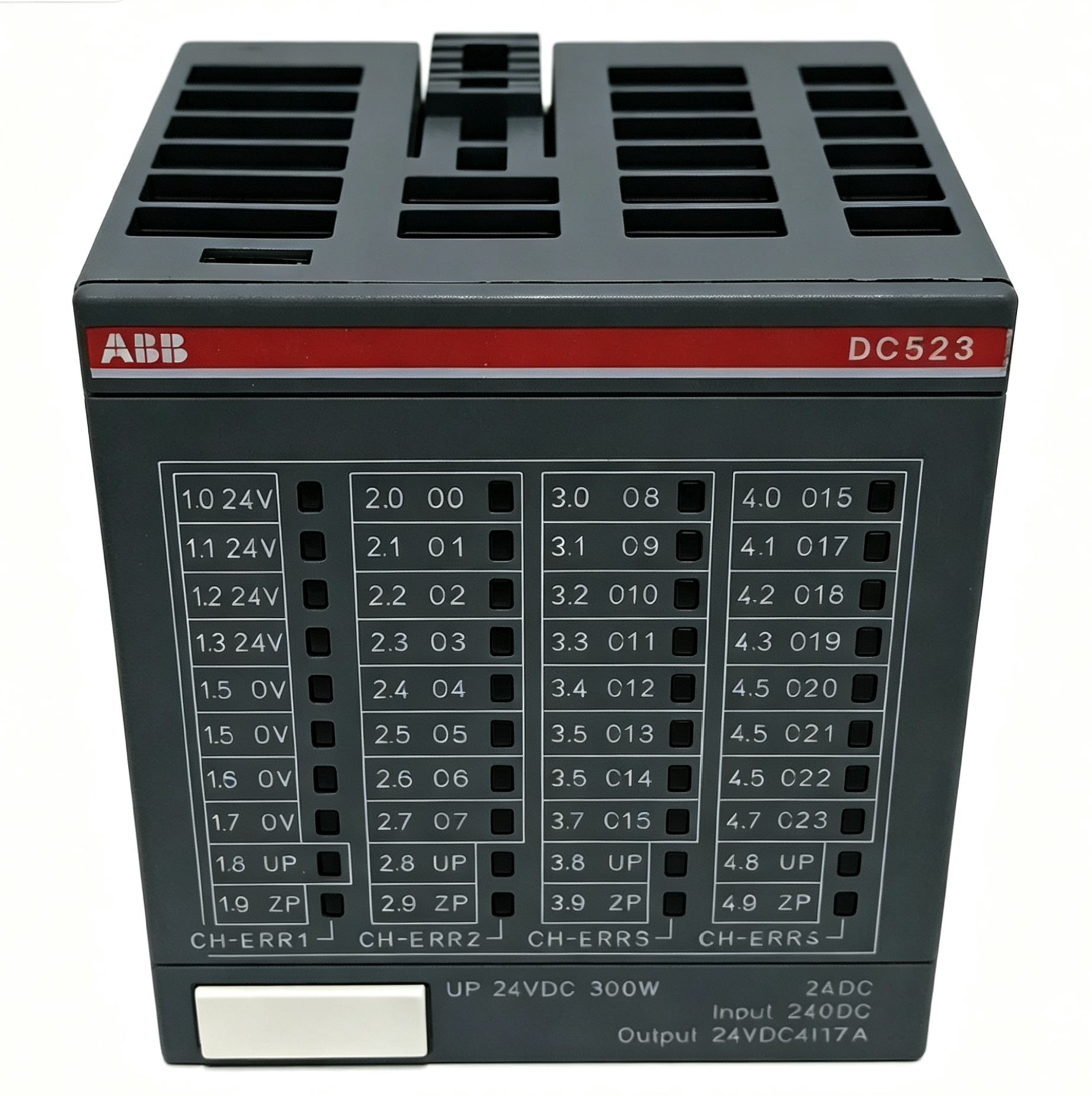

The ABB DC523 is a digital I/O module intended for use within the S500 distributed
automation system. It provides 24 configurable digital channels, allowing the same
module to accommodate different combinations of digital input and output signals
according to the control system configuration.

Digital I/O modules form an important interface layer within industrial automation
systems. Inputs can receive status signals from field devices such as switches,
sensors, auxiliary contacts, limit devices, and other discrete control components.
Outputs can provide 24 VDC control signals to actuators, relays, contactors, lamps,
valves, and other equipment where compatible electrical characteristics are required.

By combining configurable channels with an integrated fast counter function, the
DC523 provides more than a conventional fixed digital I/O arrangement. It can
therefore be applied to control systems where both ordinary discrete signals and
higher-speed pulse-related information need to be handled by the same automation
platform.

DC523 Digital Configurable I/O

The principal characteristic of the ABB 1SAP240500R1001 is its 24 configurable
digital input/output channels. The channels are designed for 24 VDC digital
signals and can be assigned according to the requirements of the automation
application.

Configurable I/O provides a practical advantage in machine and process-control
systems because field signal requirements can vary considerably between
installations. One machine may require a greater number of status inputs, while
another may require more digital control outputs. A configurable module allows
the I/O architecture to be adapted without changing the fundamental module
platform.

ABB identifies the DC523 output capability as 24 VDC with up to 0.5 A output
current per applicable output channel. The module is therefore suitable for
compatible low-voltage digital control circuits, while connected devices must
remain within the electrical limits specified for the module.

24 VDC Signal Architecture

The DC523 operates within a 24 VDC industrial control environment. Twenty-four
volt direct current is widely used in PLC and machine-control systems because it
provides a practical interface for sensors, switches, relays, solenoids, and
other field-level devices.

The module’s digital inputs interpret appropriate 24 VDC field signals as logical
states for the control program. Digital outputs provide corresponding control
signals from the automation system to connected devices. The electrical interface
between the PLC system and field equipment therefore forms an important part of
the overall control architecture.

Proper signal wiring and reference connections are essential. Field devices,
power supplies, output loads, and grounding arrangements should be designed
according to the applicable ABB installation documentation and the requirements
of the complete automation system.

Integrated Fast Counter Function

An important feature of the ABB DC523 is its integrated fast counter capability.
ABB technical information identifies a maximum counting frequency of 50 kHz for
the fast counter under the specified operating conditions.

A fast counter allows the automation system to process high-frequency pulse
signals that may be unsuitable for ordinary PLC scan-based counting. This can be
useful for applications involving pulse generators, rotating equipment, speed
feedback, position-related signals, or other devices that produce repetitive
digital pulses.

ABB documentation identifies specific I/O channels associated with the fast
counter function. The detailed operating modes and channel assignments should
be configured according to the applicable AC500 programming and hardware
documentation.

The fast counter capability gives the DC523 additional functionality within an
automation system while retaining its general-purpose digital I/O role.

Technical Specifications

S500 and AC500 Automation Platform

The DC523 belongs to ABB’s S500 I/O family used with the AC500 automation platform.
The S500 architecture provides modular I/O expansion for programmable automation
systems, allowing control applications to connect a wide range of field signals
without placing every I/O point directly on the central controller.

Distributed I/O can simplify machine architecture by placing signal interfaces
closer to the equipment being controlled. Depending on the system design, multiple
I/O modules can be assembled to provide the required combination of digital and
analog signal processing.

Within this architecture, the DC523 is specifically focused on configurable digital
signals. Its 24-channel configuration can complement other S500 modules when an
automation system requires additional digital field interfaces.

Electrical Isolation and Signal Handling

ABB technical documentation describes the DC523 as module-wise galvanically isolated.
This characteristic is relevant when considering how the I/O module interfaces
with the surrounding control architecture and field wiring.

Electrical isolation can help separate the module’s internal electronics from
external signal environments and is an important consideration in industrial
control-system design. The actual wiring and grounding arrangement should still
follow the relevant ABB installation requirements.

The module should be integrated with compatible 24 VDC field equipment and
connected according to the defined terminal and signal configuration. The output
current capability must also be considered when selecting connected loads.

DIN Rail Installation

The ABB DC523 is designed for mounting on a TH35-15 35 mm DIN rail according to
IEC 60715. DIN rail mounting provides a standardized mechanical installation
method widely used in industrial control cabinets and automation panels.

ABB documentation identifies both horizontal and vertical mounting positions,
with applicable derating requirements. Cabinet designers should therefore
consider orientation, surrounding components, ambient temperature, airflow,
wiring space, and access to the I/O terminals.

The documented dimensions are approximately 67.5 mm in width, 76 mm in height,
and 72 mm in depth, making the DC523 a compact module for distributed I/O
installations.

Industrial Automation Applications

ABB 1SAP240500R1001 can be applied in PLC-based automation systems where multiple
24 VDC digital signals need to be monitored and controlled. Typical applications
can include machine automation, conveyor systems, packaging equipment, material
handling, process equipment, production lines, and general industrial control
systems.

The configurable I/O architecture is useful when the signal mix changes between
different machines or control panels. Rather than using separate fixed-purpose
modules for every digital signal arrangement, the DC523 provides a common
configurable interface with 24 digital channels.

The integrated fast counter further expands the potential application range.
Systems involving high-frequency pulse signals can use the appropriate counter
channels for applications involving speed, frequency, pulse counting, or related
machine feedback functions.

Product Identification and Replacement Reference

The ABB 1SAP240500R1001 part number is particularly important because it represents
an earlier ordering reference for the DC523 module. ABB documentation lists
1SAP240500R1001 as the DC523 S500 digital configurable I/O module with the SIG
designation.

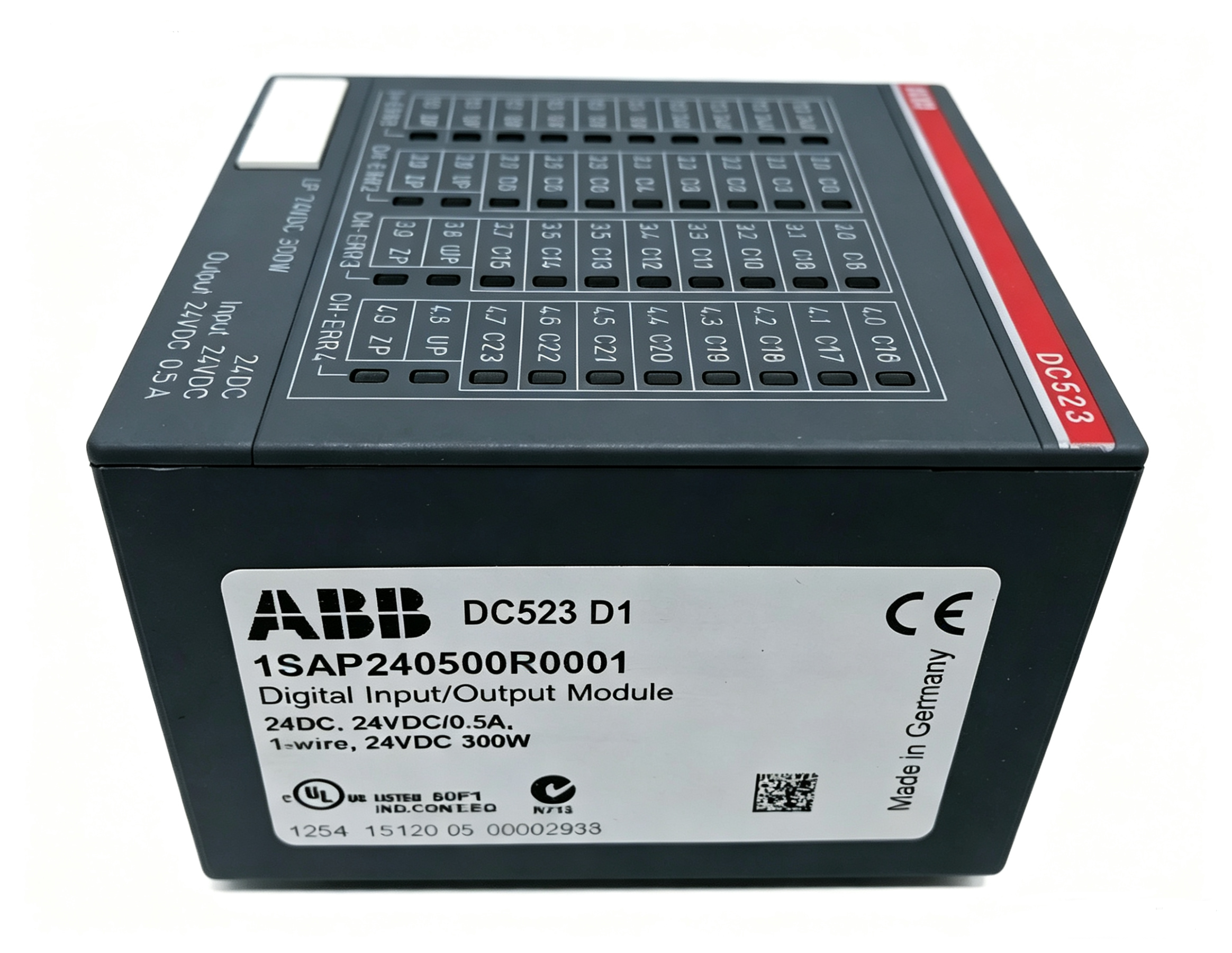

ABB product information for the DC523 identifies 1SAP240500R1001 as the replaced
product ID, while 1SAP240500R0001 is used for the corresponding DC523 ordering
reference in current product documentation. This distinction is valuable for
searches involving existing equipment, archived documentation, spare-parts
records, and legacy automation installations.

When documenting an existing system, the exact number printed on the module should
be retained. Searching by both 1SAP240500R1001 and DC523 can help identify the
correct product family and avoid confusion with related modules such as DC522,
DC532, and DC541-CM.

Conclusion

ABB 1SAP240500R1001 is the DC523 S500 digital configurable I/O module designed for
24 VDC industrial automation systems. It provides 24 configurable digital inputs
and outputs, with an output capability of up to 0.5 A for applicable channels.
The module also incorporates a fast counter function with a documented maximum
counting frequency of 50 kHz.

Its integration with the ABB AC500 automation platform makes the DC523 suitable
for distributed machine and process-control architectures. DIN rail installation,
configurable digital channels, module-level electrical isolation, and the
integrated fast counter provide a flexible interface between PLC control logic
and field-level equipment.

For product identification, ABB 1SAP240500R1001 should be associated with the
DC523 S500 digital configurable I/O module. ABB’s current DC523 documentation uses
1SAP240500R0001 as the ordering reference, while 1SAP240500R1001 remains an
important reference for existing installations and historical product searches.
The complete part number should therefore be retained when creating equipment
records or identifying a matching S500 I/O module.
