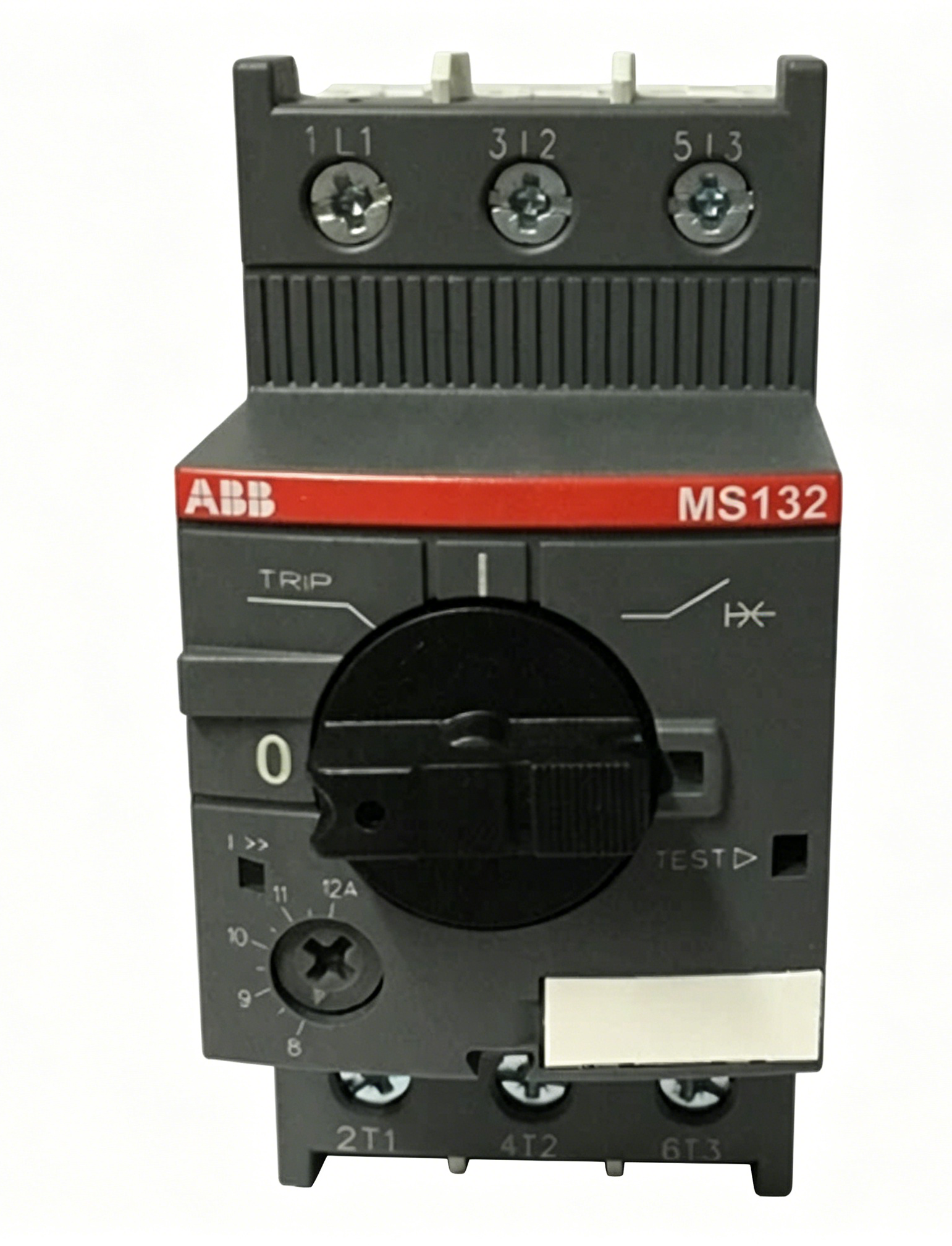

ABB 1SAM350000R1009 MS132-6.3 Manual Motor Starter

The ABB 1SAM350000R1009 MS132-6.3 manual motor starter is designed to provide reliable switching, isolation and protection for industrial motors operating in demanding environments. As a member of ABB’s widely adopted MS132 motor protection series, this compact device combines multiple protection functions within a single housing, simplifying motor control panel design while improving system reliability.

Industrial motors are continuously exposed to varying load conditions, inrush currents and electrical disturbances that can lead to overheating, winding damage and unexpected downtime. The ABB MS132-6.3 was developed to minimize these risks by integrating thermal overload protection, magnetic short-circuit protection and phase failure sensitivity into a single compact device.

Adjustable Motor Protection Range

The ABB 1SAM350000R1009 features an adjustable overload protection range from 4.0A to 6.3A, making it suitable for a wide range of industrial motors. The front-mounted adjustment dial allows engineers and maintenance personnel to configure the protection level according to the motor nameplate current requirements.

Accurate adjustment of overload settings improves operational efficiency and helps prevent unnecessary interruptions caused by temporary overload conditions while maintaining full protection against prolonged overcurrent situations.

Integrated Thermal Overload Protection

Thermal overload protection continuously monitors the motor operating current and disconnects the circuit whenever abnormal current conditions persist for an extended period. This function protects motor windings against excessive heat buildup that can shorten insulation life and lead to expensive repairs.

The trip characteristics comply with international industrial standards and are optimized for typical motor starting and running conditions commonly found in manufacturing and process automation environments.

Magnetic Short-Circuit Protection

In addition to thermal overload functionality, the MS132-6.3 incorporates an instantaneous magnetic trip mechanism that reacts rapidly to short-circuit events. This fast response limits fault energy and minimizes damage to motors, cables and connected equipment.

The device provides excellent short-circuit interruption capability and can be installed in systems with high prospective fault currents without requiring additional protective components in many applications.

Phase Failure Sensitivity

Three-phase motors are particularly vulnerable to phase loss conditions that can result in severe overheating and mechanical stress. The ABB 1SAM350000R1009 includes integrated phase failure sensitivity that detects these abnormal conditions and disconnects the motor before damage occurs.

This feature is especially valuable for pumps, conveyors, compressors and production equipment where continuous operation is essential for maintaining process efficiency.

Manual Switching and Isolation

The MS132-6.3 functions not only as a protective device but also as a manual motor switch and isolator. The rotary handle allows operators to safely start and stop motors while clearly displaying ON, OFF and TRIP positions directly on the front panel.

The integrated isolation function supports maintenance and service activities by allowing safe disconnection of the motor circuit without additional disconnect switches.

Compact Cabinet Installation

Modern control panels require efficient use of available installation space. With a width of only 45 mm, the ABB 1SAM350000R1009 offers excellent space savings while maintaining full motor protection functionality.

The device is designed for standard DIN rail mounting and can be quickly integrated into motor control centers, machinery panels and industrial distribution cabinets.

High Electrical Performance

The motor starter supports operational voltages up to 690V AC and is suitable for both domestic and international industrial installations. Its robust electrical design allows reliable operation under demanding conditions frequently encountered in heavy industry and continuous production environments.

The MS132 series also provides high service and ultimate short-circuit breaking capacities, improving installation flexibility and ensuring dependable fault protection.

Accessory Expansion Possibilities

The ABB MS132 family supports a wide range of accessories that increase application flexibility. Auxiliary contacts can provide remote status indication, while shunt trips and undervoltage releases enable integration into sophisticated automation and safety systems.

Additional accessories including busbars, terminal blocks and locking devices simplify installation and support the construction of modular motor control assemblies.

Industrial Applications

• Industrial pumps and pumping stations
• Conveyor and material handling systems
• Packaging and processing machinery
• Compressors and ventilation equipment
• Water and wastewater treatment plants
• Food and beverage production facilities
• HVAC systems and building automation
• Machine tools and manufacturing equipment
• Industrial fans and blowers
• Automated production lines

Technical Specifications

• Product Number: 1SAM350000R1009
• Series: MS132
• Model: MS132-6.3
• Protection Range: 4.0A to 6.3A
• Number of Poles: 3
• Rated Operational Voltage: Up to 690V AC
• Rated Insulation Voltage: 690V
• Impulse Withstand Voltage: 6kV
• Trip Class: Class 10A
• Mounting Method: DIN Rail
• Protection Type: Thermal Magnetic
• Housing Protection: IP20
• Handle Position Indication: ON/OFF/TRIP
• Width: 45 mm
• Frequency: 50/60 Hz

Reliability in Industrial Environments

The ABB 1SAM350000R1009 is engineered for long operational life and dependable performance in industrial environments characterized by vibration, temperature fluctuations and demanding electrical conditions. Its durable construction and proven ABB protection technology contribute to reduced maintenance requirements and improved system availability.

Temperature compensation technology ensures stable protection performance over a broad ambient temperature range, helping maintain consistent operation regardless of environmental conditions.

Conclusion

The ABB 1SAM350000R1009 MS132-6.3 manual motor starter provides a highly effective combination of motor switching, overload protection, short-circuit interruption and phase failure detection in a compact DIN rail mounted package. Its adjustable protection range of 4.0A to 6.3A, high breaking capacity and extensive accessory support make it an ideal solution for industrial motor protection applications requiring reliability, safety and installation efficiency.
