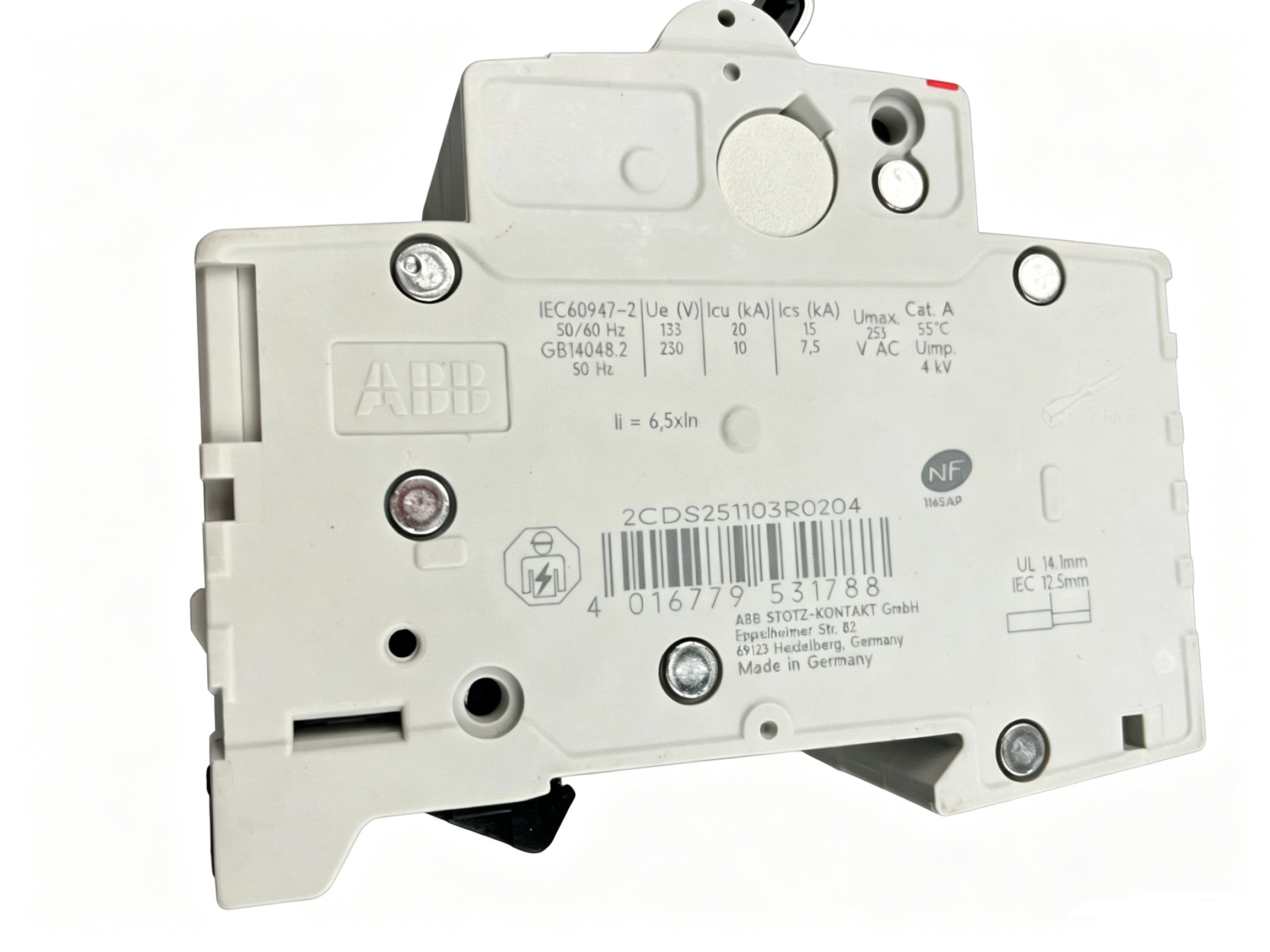

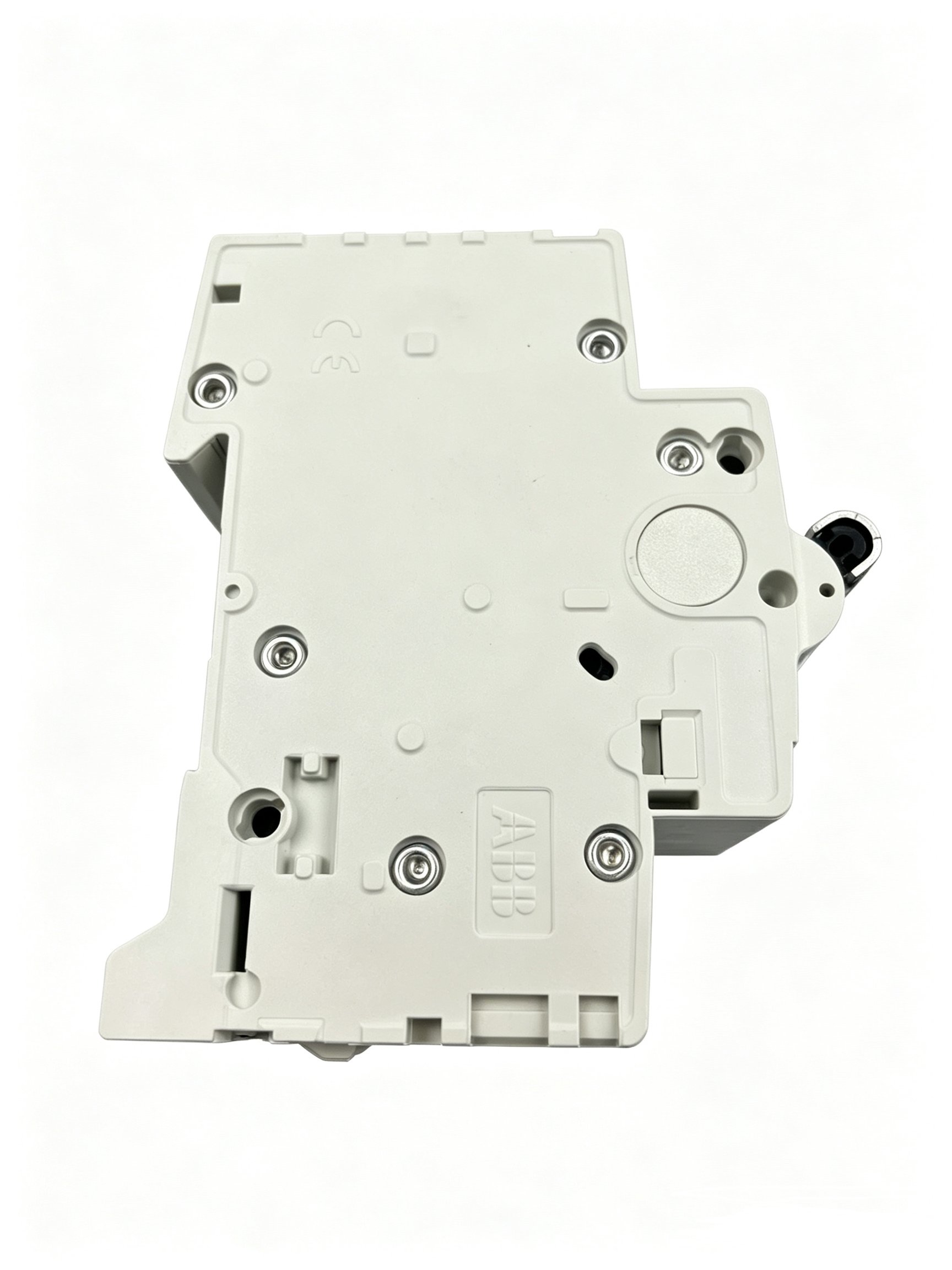

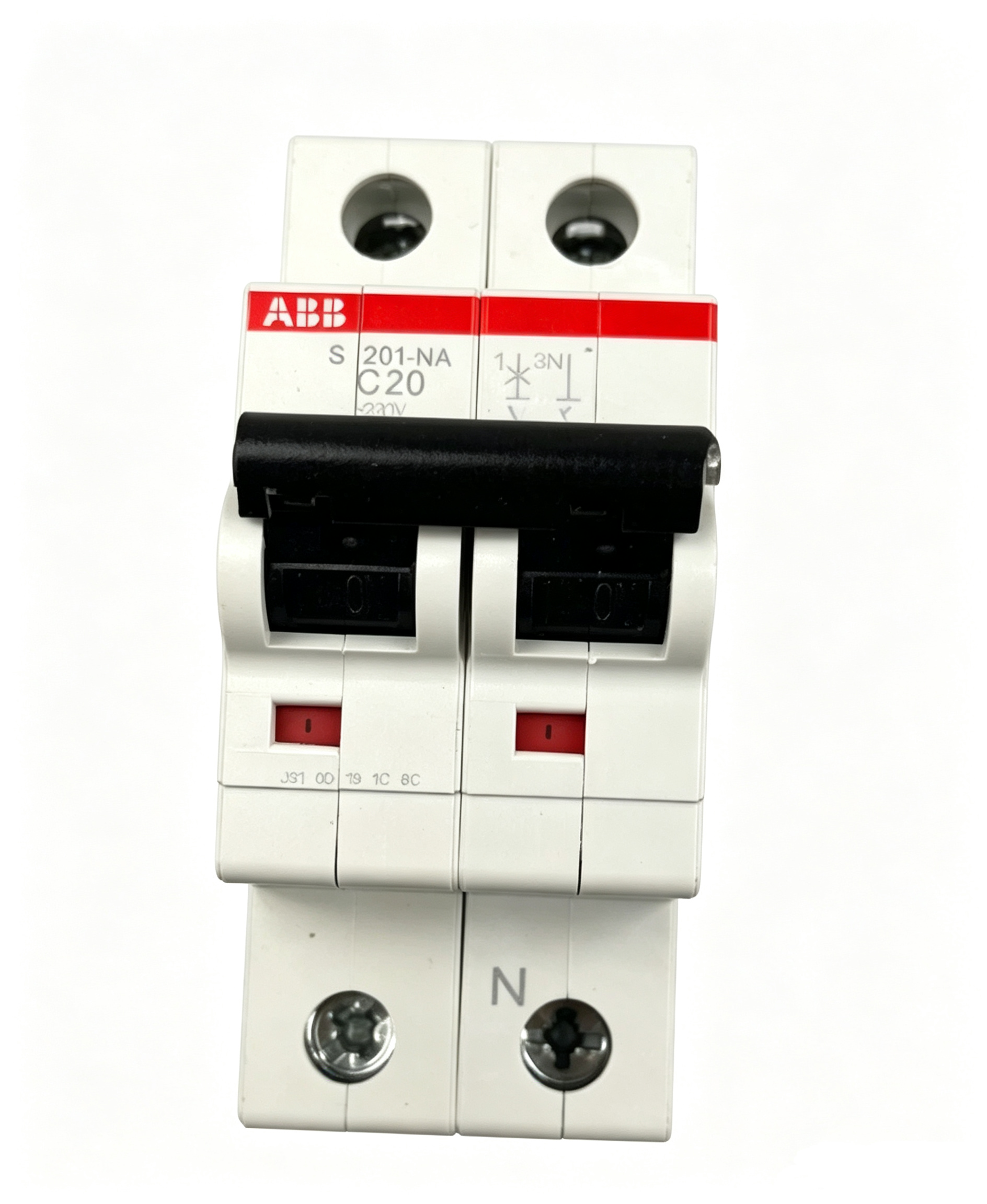

ABB 1277852 S201-C20NA Miniature Circuit Breaker

Product Overview

ABB 1277852 is an S201-C20NA miniature circuit breaker designed for low voltage electrical distribution and protection applications. It belongs to the ABB S200 series, a modular circuit protection product family developed for reliable electrical safety, efficient installation, and flexible system integration.

The device is designed to protect electrical cables, circuits, and connected equipment against overload currents and short circuit faults. With its compact modular construction, ABB 1277852 provides dependable interruption performance and is suitable for applications where stable electrical protection and space-efficient installation are required.

The product features a 20A rated current, C tripping characteristic, and 1P+N configuration. The integrated neutral switching function allows coordinated disconnection of phase and neutral conductors, improving circuit isolation and maintenance safety. According to product specifications, ABB 1277852 corresponds to the S201-C20NA model with 230V rated voltage and 6kA short circuit breaking capacity. :contentReference[oaicite:1]{index=1}

Product Features

ABB 1277852 combines ABB’s professional circuit protection technology with a modular design concept. The miniature circuit breaker uses thermal and electromagnetic release mechanisms to provide accurate protection against different electrical fault conditions.

• Product model: ABB 1277852
• Original type: S201-C20NA
• Product category: Miniature Circuit Breaker
• Rated current: 20A
• Tripping characteristic: C curve
• Configuration: 1P+N
• Rated voltage: 230V AC
• Short circuit breaking capacity: 6kA
• Mounting method: DIN rail installation
• Product family: ABB S200 series

The C characteristic curve allows ABB 1277852 to provide reliable protection for electrical circuits with moderate inrush currents. It is suitable for applications containing general electrical loads, control equipment, lighting systems, and small industrial devices.

Technical Design and Operating Principle

ABB 1277852 is designed according to the modular protection philosophy of the ABB S200 series. The internal structure combines a thermal release unit for overload protection and an electromagnetic release unit for rapid short circuit interruption.

During normal operation, the circuit breaker allows current to flow through the protected circuit. When the current exceeds the specified operating range for an extended period, the thermal mechanism activates to disconnect the circuit and prevent overheating of electrical wiring.

When a short circuit occurs, the electromagnetic release responds immediately and interrupts the current path. This fast response helps reduce electrical stress on connected components and improves overall system safety.

The compact enclosure design enables efficient installation inside distribution boards and electrical control cabinets. The modular structure allows ABB 1277852 to be combined with other ABB protection and control devices to create customized electrical solutions.

ABB S200 Series Advantages

The ABB S200 series is designed as a professional low voltage protection platform offering reliable operation, modular flexibility, and compatibility with modern electrical installations. Products within this series are widely applied in industrial, commercial, and infrastructure projects.

ABB 1277852 benefits from the standardized design of the S200 series, allowing easy integration into electrical distribution systems. The consistent modular dimensions simplify panel design and help engineers achieve organized cabinet layouts.

The product supports accessory integration, enabling additional functions when required. This modular approach allows electrical systems to be expanded according to different application requirements.

Application Areas

ABB 1277852 is suitable for a wide range of low voltage electrical protection applications. Its reliable performance makes it a practical solution for protecting circuits in industrial automation systems, commercial buildings, and electrical distribution equipment.

In industrial automation environments, the circuit breaker can be installed in control cabinets and machine electrical panels to protect auxiliary power circuits, control devices, and electrical branches. Its compact dimensions are beneficial for applications where cabinet space needs to be optimized.

In commercial and building installations, ABB 1277852 can be applied to power distribution boards, lighting systems, and facility electrical networks. The 1P+N configuration provides convenient circuit isolation and improves operational safety during maintenance activities.

Installation Characteristics

ABB 1277852 adopts a standard DIN rail mounting design, allowing straightforward installation in electrical distribution assemblies. The modular housing enables efficient arrangement with other ABB components while maintaining clear identification and accessibility.

The device supports professional wiring applications with reliable terminal connections. The optimized terminal design improves conductor connection stability and helps maintain consistent electrical performance during long-term operation.

The S200 series uses a compact structure that helps reduce installation space requirements while maintaining high protection performance. This makes ABB 1277852 suitable for electrical panels where reliability and efficient space utilization are important considerations.

Protection Performance and Reliability

Electrical protection components play an essential role in maintaining safe and stable operation of power distribution systems. ABB 1277852 provides automatic circuit interruption when abnormal current conditions exceed safe operating limits.

The combination of accurate C curve tripping characteristics, robust mechanical construction, and ABB engineering standards ensures dependable operation across different electrical environments.

By using ABB 1277852 in a protection system, engineers can improve circuit safety, protect electrical equipment, and reduce risks caused by overload or short circuit conditions.

Conclusion

ABB 1277852 S201-C20NA miniature circuit breaker is a reliable low voltage protection device designed for modern electrical distribution applications. With a 20A rated current, C characteristic curve, 1P+N configuration, and ABB S200 series technology, it provides effective protection against electrical overload and short circuit faults.

Combining compact modular construction, flexible installation options, and dependable protection performance, ABB 1277852 is suitable for industrial automation systems, commercial electrical installations, and various low voltage distribution applications requiring safe and stable operation.
