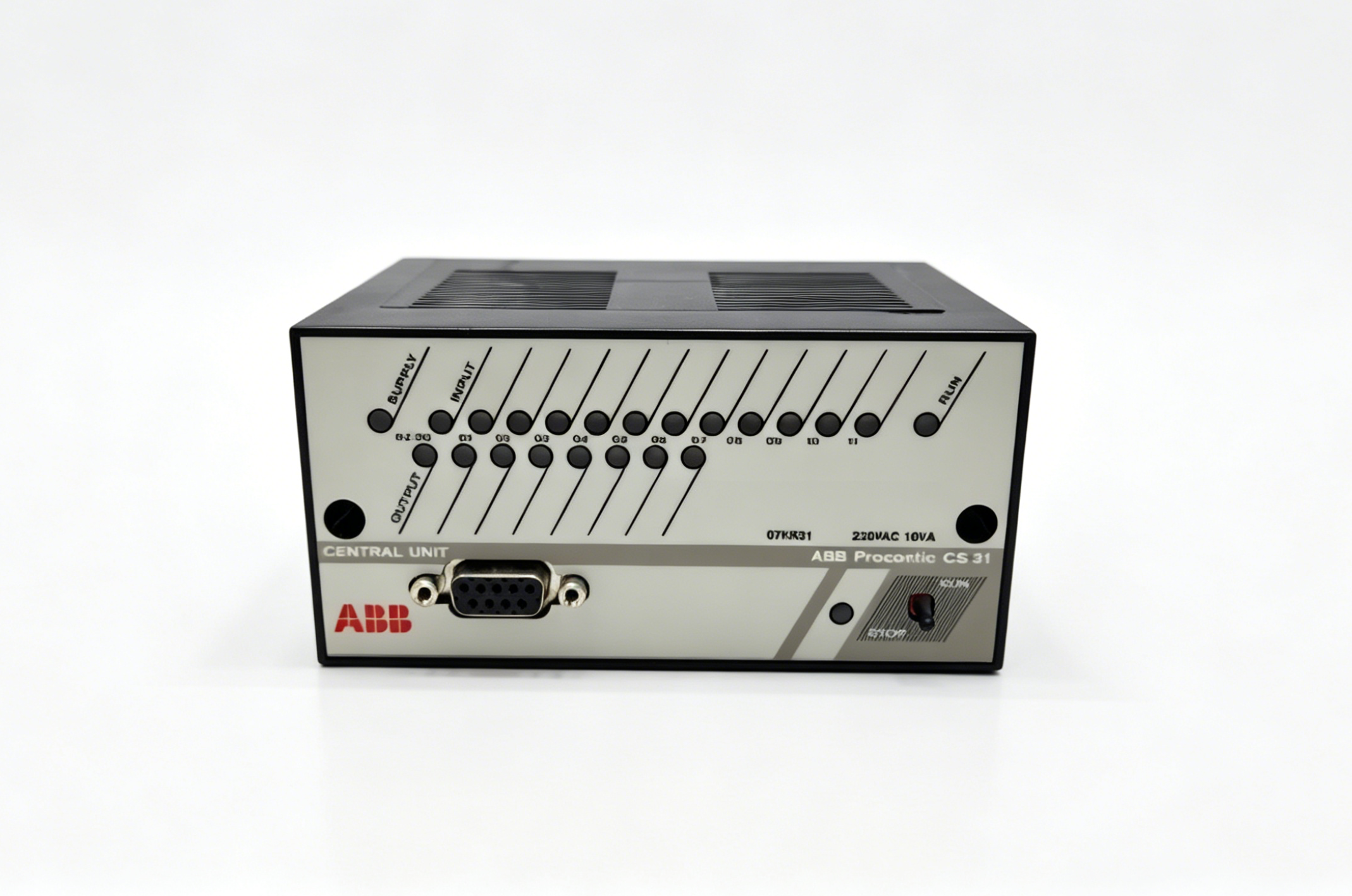

ABB 07KR31 CS31 Central Processing Unit Overview

The ABB 07KR31 is an industrial central processing unit (CPU) designed for ABB Procontic CS31 automation systems. It serves as the main control element responsible for executing logic instructions, processing input and output signals, and coordinating communication between distributed I/O modules. In industrial automation architectures, the CPU plays a critical role in ensuring deterministic control behavior and stable operation of machinery and process systems. The 07KR31 is widely used in medium-scale automation applications where reliability, compact design, and integrated control functionality are required.

In CS31 system architecture, the ABB 07KR31 functions as the master controller of the automation network. It continuously scans input signals from field devices such as sensors, switches, limit detectors, and interlock systems. The CPU processes these signals according to pre-programmed logic instructions and updates output states in real time. This scan-based execution model ensures predictable control timing, which is essential for industrial automation systems where process synchronization is required.

The ABB 07KR31 integrates both digital input and relay output channels within a single control unit. It typically operates with 24V DC input signals and provides relay-based output switching for controlling actuators, contactors, alarms, and industrial devices. Relay outputs offer galvanic isolation, which improves system safety and reduces the impact of electrical noise in industrial environments. This makes the module suitable for harsh operating conditions commonly found in factory automation systems. ([powerdcs.com](https://www.powerdcs.com/fa/products/abb-07kr31-central-processing-unit))

One of the most important functions of the ABB 07KR31 is its real-time logic execution capability. The CPU runs a continuous scan cycle consisting of input reading, program execution, and output updating. This cycle ensures that all control decisions are based on the most recent field data. The deterministic nature of this process allows engineers to design predictable automation sequences for machine control, production lines, and process systems.

The module is equipped with EEPROM-based non-volatile memory, which stores user programs and configuration data. This memory ensures that control logic is retained even during power loss, eliminating the need for reprogramming after system restart. Typically, the memory capacity supports thousands of instruction words, enabling moderately complex automation programs to be executed directly on the CPU.

Communication is another key feature of the ABB 07KR31. The module supports RS232 programming interface and RS485 communication via the CS31 system bus. RS485 enables multi-node communication between distributed I/O modules and the central CPU, allowing scalable system expansion. This communication structure is essential for building distributed control systems where multiple devices operate under centralized logic coordination.

The ABB CS31 platform is designed as a modular automation system. The 07KR31 CPU can operate alongside multiple expansion modules, including digital I/O units, analog modules, and communication interfaces. This modularity allows system designers to scale automation solutions according to application requirements without replacing the central controller.

Another important feature of the ABB 07KR31 is its high-speed counter function. The module can process pulse signals at frequencies up to approximately 10 kHz, enabling basic motion tracking, production counting, and encoder signal processing. This makes it suitable for applications involving conveyor systems, packaging machines, and simple positioning systems where pulse counting is required.

From a system integration perspective, the ABB 07KR31 acts as the central node of the CS31 network. It assigns addresses to connected modules, manages data exchange, and ensures synchronization across the distributed system. This hierarchical structure allows complex automation systems to be built with minimal wiring complexity and high system flexibility.

The CPU is designed for industrial reliability and long-term operation. It can operate continuously in environments with electrical noise, temperature fluctuations, and mechanical vibration. These conditions are common in manufacturing plants and industrial control rooms, where stable performance is critical for production continuity.

Maintenance and diagnostics are supported through LED indicators and system status signals. Operators can quickly identify input/output status, communication activity, and fault conditions. This reduces troubleshooting time and improves system availability. In addition, the modular structure allows faulty components to be replaced without affecting the entire system.

The ABB 07KR31 is widely used in industrial automation applications such as conveyor control systems, machine automation, packaging lines, material handling systems, and small-scale process control installations. Its combination of integrated I/O, communication capability, and real-time processing makes it suitable for a wide range of industrial use cases.

In conclusion, the ABB 07KR31 CS31 central processing unit is a reliable and efficient PLC controller designed for industrial automation systems. Its scan-based execution model, integrated digital I/O, RS485 communication, EEPROM memory storage, and modular system architecture make it a core component of ABB Procontic CS31 distributed control systems, delivering stable and deterministic performance in industrial environments.
